140W Double Head LED Beam&Strobe&Laser 3in1 Moving Head 8x12W RGBW 8x5W Bright Golden Red Green Laser Star DJ Lights effect

A Comprehensive Overview of the 140W Double-Head LED Beam & Strobe & Laser Moving Head

This document provides a detailed examination of the 140W Double-Head LED Beam & Strobe & Laser Moving Head, highlighting its key features, functionalities, and operational procedures. This powerful and versatile lighting fixture is designed for professional DJs, entertainment venues, and theatrical productions seeking sophisticated lighting solutions.

Technical Specifications

The fixture boasts a robust construction and a comprehensive range of capabilities. Crucially, it operates on a standard AC input voltage (110-240V, 50-60Hz), allowing for global compatibility. Its rated power output of 140W ensures ample energy for the demanding tasks of multiple LED and laser sources.

The core of the unit encompasses eight high-performance 12W RGBW 4-in-1 LED beam sources and eight 5W bright golden strobe LEDs. This combination yields a captivating spectrum of colors and dynamic lighting effects. Complementing the LED arrangement is a single 1MW red laser and a single 1MW green laser, providing targeted illumination points ideal for creating star light effects and visual spectacles.

The fixture offers exceptional rotational capabilities with pan coverage of 540° and unlimited tilt rotation. This broad range of movement ensures complete control and flexibility in directing light patterns in any chosen direction. Digital control, provided by a robust DMX512 interface, is integral to controlling all parameters. The unit supports 16 DMX channels, enabling precise manipulation of each element for intricate and dynamic effects.

Control and Operation Modes

Multiple control options are available to maximize the fixture's versatility on various applications. The DMX512 protocol, a ubiquitous standard in the professional lighting industry, allows comprehensive control over all facets of the light show. Using dedicated DMX controllers, users can program complex sequences, color palettes, and movement routines.

An auto-run mode offers an array of pre-programmed light shows that can be activated for immediate visual impact, catering to various lighting contexts or user preferences.

In addition, a sound-activation mode allows the light to react in sync with the prevalent audio track. This responsive functionality dynamically enhances the entertainment experience by creating a cohesive and rhythmic visual accompaniment to music. Lastly, for users who require a chained or coordinated lighting experience across numerous fixtures, a master/slave function is provided.

Lighting Effects

The combination of the RGBW LEDs and the bright golden strobe LEDs enables a vast array of lighting effects. Color mixing across the entire color spectrum enhances visual appeal, and the precision dimming control provides finely tuned adjustments of light intensity for a smooth transition between different color combinations or intensities. The strobe LEDs, capable of 20 flashes per second, establish dynamic rhythmic patterns, ideal for creating rapid and impactful lighting scenes.

The red and green lasers, with their high illumination power, contribute intensely targeted beams ideal for projection effects and star-lighting arrangements. This unique blend of traditional and advanced lighting technologies offers exceptional luminescence for any application.

Construction & Size

The durable construction and substantial weight (2.9 kg net weight, 3.6 kg gross weight) ensures robustness and stability. This structural integrity is paramount for professional use.

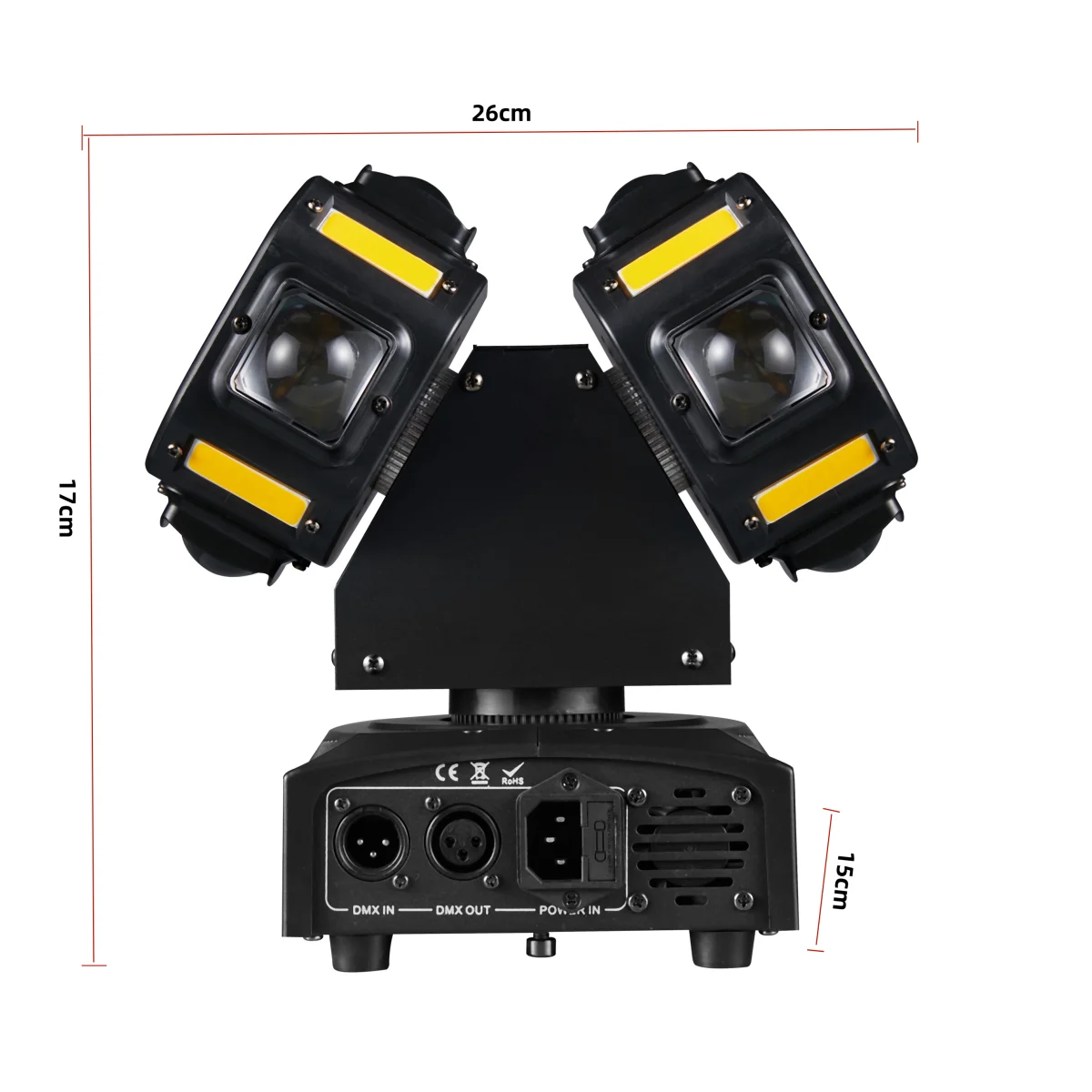

The device measures 26cm x 17cm x 15cm (LxWxH), and its packaging dimension are 29cm x 18cm x 26.5cm (LxWxH).

Physical Setup and Installation

The unit is designed for ease of installation and operation. Upon unpacking, the user will find a power cable, a comprehensive user manual, the light fixture itself, a DMX cable, and a bow mount assembly with installation screws.

The bow mount can be installed on the fixture's bottom. Proper following of the instructions detailed in the user manual for installation is crucial to ensure the stability and safe operation of the lighting equipment.

Operation and Maintenance

The user manual provided with the fixture meticulously details setup, operational procedures, and maintenance guidelines, explaining the fixture's control options and how to achieve desired effects. It is indispensable for users to thoroughly review the manual before any attempt at operation.

Proper operation requires adherence to the recommended voltage. Extreme care should be taken during electrical connections to prevent electrical surges and damage. Regular inspection of the unit for any signs of wear or tear is recommended to prevent unforeseen problems. Should any discrepancies occur, please contact a certified technician for maintenance.

Conclusion

The 140W Double-Head LED Beam & Strobe & Laser Moving Head embodies a comprehensive approach to modern lighting dynamics. Its advanced capabilities, coupled with its functional and straightforward setup, make it an invaluable asset for professional entertainment, stage, and event use. The integrated range of controls, from the intuitive DMX512 protocol to the dynamic responsiveness of the sound-control feature, ensures the fixture's flexibility across various applications. Understanding the comprehensive information herein will allow users to harness its full potential for creating exceptional and visually striking light shows.

1. TECHNICAL PARAMETERS

Input voltage:AC110--240V,50--60Hz

Power:140W

LED Beam Source :8x12W RGBW 4in1

LED Strobe Source：8x5W Bright Golden Strobe

Laser: 1PCS 1MW Red ,1PCS 1MW Green（ Star Lights effect）

Movement: Pan: 540°,Tilt: 360°unlimited rotation

Control signal: international standard DMX512

DMX Channel:16 channels

Control mode:DMX512,Auto Run ,Sound Control ,Master/Slave.

Strobe:20Flashes per second (any color)

Dimmer: 0-100% With regulated constant color control

N.W: 2.9 kg

G.W: 3.6 kg

Product Size：26x17x15cm

Packing size: 29x18x26.5cm

2.Accessories

Unpack the device. Inside the carton box you should find:

1.One power cable

2.One user manual

3.One pcs lights

4.One pcs DMX cable

5.One pcs bow mount and 2 pcs Screws Install the bottom of the ligh
