2-Inch V-Type Pulley Roller – 304 Stainless Steel Sliding Gate Wheel Bearing

V-Type Pulley: A Robust and Durable Solution for Material Handling

This document details the features, specifications, and applications of the V-Type Pulley, a high-quality, stainless steel pulley designed for efficient and reliable material handling, particularly suitable for sliding gates and similar applications. Its robust construction and precision engineering ensure long-lasting performance in demanding environments.

Product Overview

The V-Type Pulley is a meticulously crafted component engineered for strength, durability, and smooth operation. Constructed from 304 stainless steel, it exhibits exceptional resistance to corrosion and rust, making it ideal for outdoor use or applications involving humid environments. The enhanced design features a thicker support plate, resulting in increased load capacity compared to comparable pulleys. Critical components, including the steel plate bracket and wheel core, are thickened to maximize bearing capacity. Ensuring reliable performance, each pulley incorporates two carbon steel ball bearings, which significantly reduce friction and noise during operation. The removable design facilitates easy installation and maintenance.

Key Features and Benefits

The V-Type Pulley stands out due to its numerous advantages:

• Enhanced Load Capacity: The thickened construction, including the steel plate and wheel core, significantly bolsters load capacity. A single pulley can sustain a substantial load of 660 lbs (300 kg). This feature is particularly advantageous for applications requiring high-capacity handling.
• Corrosion Resistance: Constructed from high-grade 304 stainless steel, the pulley exhibits superior resistance to rust and corrosion. This characteristic ensures extended lifespan and optimal performance, even in challenging outdoor conditions. Protecting against environmental degradation is paramount in long-term application.
• Smooth Operation: The inclusion of two carbon steel ball bearings within the pulley minimizes friction and noise during operation. This translates to smooth, quiet operation, a crucial consideration in various applications. The reduction in friction also extends the pulley's operational lifespan by reducing the wear and tear on the internal components.
• Easy Installation and Maintenance: The removable pulley design significantly simplifies installation and maintenance. This characteristic reduces setup time for users and supports proactive upkeep. Ensuring easy accessibility for any maintenance required will extend the overall life cycle.
• Precision Engineering: Each component, from the wheel diameter and thickness to the groove depth, is meticulously designed for optimal performance and durability. These precise specifications ensure compatibility with various applications.
• Versatile Applications: While primarily designed for sliding gate systems, the pulley's robust attributes accommodate diverse roles. This versatility empowers users to leverage its inherent robustness for other material handling systems or equipment.

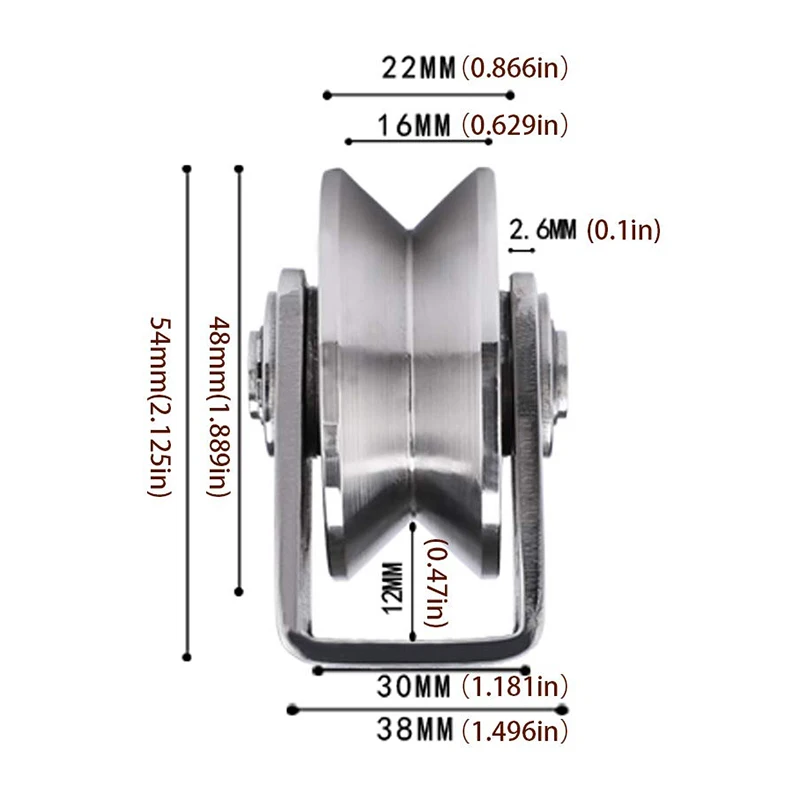

Technical Specifications

The V-Type Pulley boasts the following technical specifications:

• Material: 304 Stainless Steel
• Color: Silver
• Installation Height: 54mm (2.125in)
• Wheel Diameter: 48mm (1.889in)
• Wheel Thickness: 22mm (0.866in)
• Groove Width: 16mm (0.629in)
• Groove Depth: 7mm (0.27in)
• Product Weight: 280g (0.617lb)
• Load Capacity: 300kg (660lbs)

These specifications solidify the pulley's suitability for diverse applications.

Applications

The V-Type Pulley's features make it suitable for a wide array of applications, particularly those requiring robust, corrosion-resistant, and smooth-operating components. Applications include:

• Sliding Gates and Doors: This is the primary application, leveraging the pulley's load capacity and corrosion resistance in heavy-duty sliding gate systems.
• Material Handling Systems: The pulley's durability and enhanced load capacity make it usable in material handling systems demanding high-load tolerance.
• Industrial Equipment: Its reliability in harsh industrial environments makes it appropriate for a wide array of industrial applications; such as for lifting and moving heavy materials.
• Construction and Engineering: The pulley's strength is applicable in construction and engineering tasks involving lifting and transporting materials in outdoor applications.

Installation and Usage

Proper installation is crucial for optimal pulley performance. The V-Type Pulley is easily installed using common hardware. The manufacturer recommends consulting detailed installation guides or contacting customer service for specific installation instructions adapted to the particular application.

• Preparation: Ensure the installation area is clean, and all necessary hardware is accessible.
• Attachment: Carefully attach the pulley to the relevant structural support based on the specific application.
• Load Application: Ensure an appropriate load is applied following safe operating procedures and adhering to the pulley's load capacity. Overloading the pulley may damage the mechanism and pose safety risks.

Safety Considerations

To maximize safety, it is essential to follow these precautions:

• Load Capacity: Never exceed the rated load capacity of the pulley. Exceeding this limit can result in damage and safety hazards.
• Proper Installation: Adhere to the provided installation guidelines for safe and efficient operation.
• Regular Inspection: Regularly inspect the pulley for any signs of wear or damage. Promptly address any issues as they arise to maintain the longevity and safety features.

Conclusion

The V-Type Pulley, constructed from 304 stainless steel, offers a robust and durable solution for material handling. Its enhanced load capacity, corrosion resistance, and smooth operation make it ideal for various applications throughout diverse industries. Comprehensive consideration of safety guidelines is paramount during installation and operation to minimize risks. This pulley is suitable for applications requiring dependability and efficiency in both indoor and outdoor settings.
