3.5 Inch and 5 Inch IPS Screen USB C Port CPU GPU RAM HDD Monitor: A Comprehensive Overview
This document provides a detailed technical overview of the 3.5-inch and 5-inch IPS screen USB C port CPU GPU RAM HDD monitor. Designed for use with Windows systems, these compact secondary displays offer a convenient and informative way to monitor critical system data, including CPU, GPU, RAM, and HDD performance. The following sections delineate product features, installation procedures, and usage guidelines.
Product Specifications

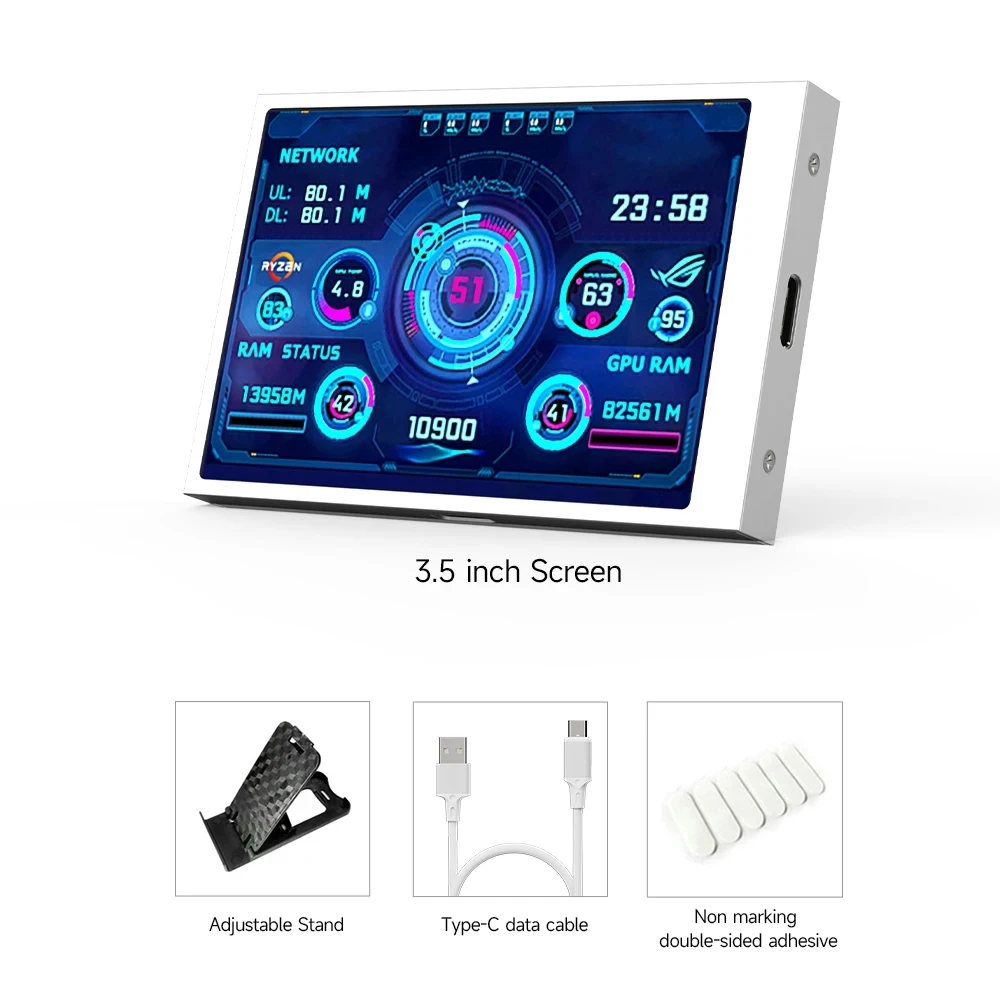

The 3.5-inch and 5-inch displays are characterized by their miniature design and robust functionality. Both utilize IPS (In-Plane Switching) technology, guaranteeing a wide viewing angle and vibrant image quality. The 3.5-inch variant measures 55mm by 85mm, while the 5-inch model boasts dimensions of 55mm by 85mm. Critical to this product's appeal is the USB Type-C interface, ensuring compatibility across a wide range of modern computing devices. The display area of the larger 5-inch model is 75mm by 50mm. Both models exhibit a resolution of 320×480 pixels, contributing to a sharp and detailed image.
The compact form factor and lightweight design facilitate seamless integration into existing setups. The 8mm thickness adds to the portability and aesthetic appeal of the device. The device’s metal frame provides robust construction and emphasizes its professional aesthetics, while the black color scheme maintains a sleek and modern look.
Download and Installation Instructions
The downloadable files for both display sizes are provided via direct download links. The 3.5-inch display is accessible through a direct download link. For the 5-inch model, the download files are housed within a Google Drive folder, requiring the user to manually locate and extract the necessary files using appropriate tools.
Access the respective download links using a compatible web browser. Upon successful download, the user must extract the file archive to the target directory. Critical to proper operation in the case of extracted files is to follow the instructions provided in the user's guide, which is present in the downloaded archive.
System Compatibility
The monitors are optimized for Windows operating systems. While other operating systems may not be fully supported, a test procedure is suggested. Due to the nature of device drivers this is a recommended method to ensuring compatibility.
User Guide and Installation Instructions
The included user's manual addresses the detailed installation and usage of the monitor. The manual will feature step-by-step instructions alongside visual aids. Essential information regarding connectivity, software configuration, and troubleshooting steps are included.
Thorough examination of the user manual is crucial for maximizing the system’s performance and avoiding any potential complications.
Utilizing AIDA64 for Enhanced System Monitoring
Integrating AIDA64 and the USB display significantly enhances system monitoring capabilities. AIDA64 delivers detailed information about CPU, GPU, RAM, disk performance, and a host of hardware characteristics. By using this display in conjunction with the software, users can easily monitor critical system parameters and promptly address any performance issues that may arise.
Employing the USB Display
Connecting the display is accomplished using the provided USB Type-C cable. Once connected, the system should automatically recognize the display. Users may need to configure the display resolution and other parameters appropriate for the display within the Windows operating system settings.
This step-by-step approach ensures seamless connection and proper display of information. The user may adjust the screen orientation according to preference or functional requirements.
Troubleshooting and Support
Should any issues arise during installation or operation, consulting the user's manual is the first recommended step. Should the problem persist, users can refer to the provided contact information for technical assistance.
Conclusion
This detailed description highlights the practical applications of the 3.5-inch and 5-inch IPS screen USB displays. These displays, designed specifically for monitoring internal system data, provide practical, streamlined information to users. Their portability and visual clarity contribute significantly to an enhanced user experience and provide a more streamlined approach to performance monitoring. The availability of a thorough user manual combined with the detailed specifications makes this a versatile and reliable system monitoring tool for a diverse range of users.
