CCTV DVR 4 Channel 1080N AHD DVR Digital Video Recorder 4 IN 1 Hybrid DVR 1080P NVR Security Surveillance P2P

Name: CCTV DVR 4 Channel 1080N AHD DVR Digital Video Recorder 4 IN 1 Hybrid
SKU: 1000011625717142
Price: 68.99 USD
Availability: InStock
Rating: 4.9 (25 reviews)

$68.99 USD$144.49 USD

Video Input: 4CH

4CH

8CH

Plug Standard: US Plug

US Plug

EU Plug

UK Plug

AU Plug

ADD TO CART

BUY NOW

Report This Product

Order

Production

Shipped

Delivered

Product Details

Things to note about AHD:

Many languages support please make sure include your country language, we will not update firmware to other language
(if not include your country language, not recommend to buy)

Display Max 1920*1080P

Newest H.265 AHD Mode
This is the AHD H.265, not the same as IP H.265,No require for the camera, if your camera is the AHD camera and contact this dvr, it will be H.265 storage, can save around 50% RAM than normal ahd dvr

Support Xmeye Pro APP

4CH HVR Models Optional

8CH HVR Models Optional

Features:

Ø Support H.265 encoding, ultra-low bitrates, compatible with H.264 surroundings;

Ø Support VGA, HDMI-Compatible full HD output simultaneously;

Ø Support ONVIF; access third party;

Ø Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;

Ø Support web, CMS, center platform management software MYEYE, provide SDK development;

Ø Support various mobile monitoring (iPhone, Android);

Ø Remote Access, With DNS (ARSP),easy to monitor remotely

Ø Support UTC, control signal& video stream transmit through one single coaxial

Ø Support XVI/AHD/TVI/CVI/CVBS/IP six signals;

Ø Support Digital to analog conversion,Instant playback

	Model	45N04R-XMC	45N04/08R-XMC
	Main processor	XM8520	XM8521
Interface	Preview	1/4	1/4/9
Video	Codec	H.265
	Monitor quality	VGA(1080P at most);HDMI(1080P at most)
		AHD1080N Resoluton is 960*1080, Please attction this information
	Preview ability	AHD: 41080N (6in1) IP: 81080P	AHD: 81080N/ 45M-N 20fps(6in1) IP:85MP/ 161080P
	Encode ability	AHD: 41080N(6in1) IP: 81080P	AHD: 81080N/ 45M-N 20fps(6in1) IP: 85MP/ 161080P
	Decode ability	AHD: 2*1080N(6in1)	AHD: 41080P 12fps/ 25M-N 12fps(6in1)
	Multi-mode input	AHD: 41080N(6in1) IP: 81080P	AHD: 81080N/ 45M-N(6in1) IP: 85MP/ 161080P
		This two dvrs all not support IP and AHD work together
	Motion Detection	Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)
Audio	Audio compression	G.711A
	Intercom	support
Record & playback	Record mode	manual>alarm>motion detection>timing
	Local Playback	1CH	1CH
	Search mode	Search by time, calendar, event, channel
Storage & backup	Video storage	HDD, network
	Backup mode	Network, USB hard disk, USB burner, SATA burner

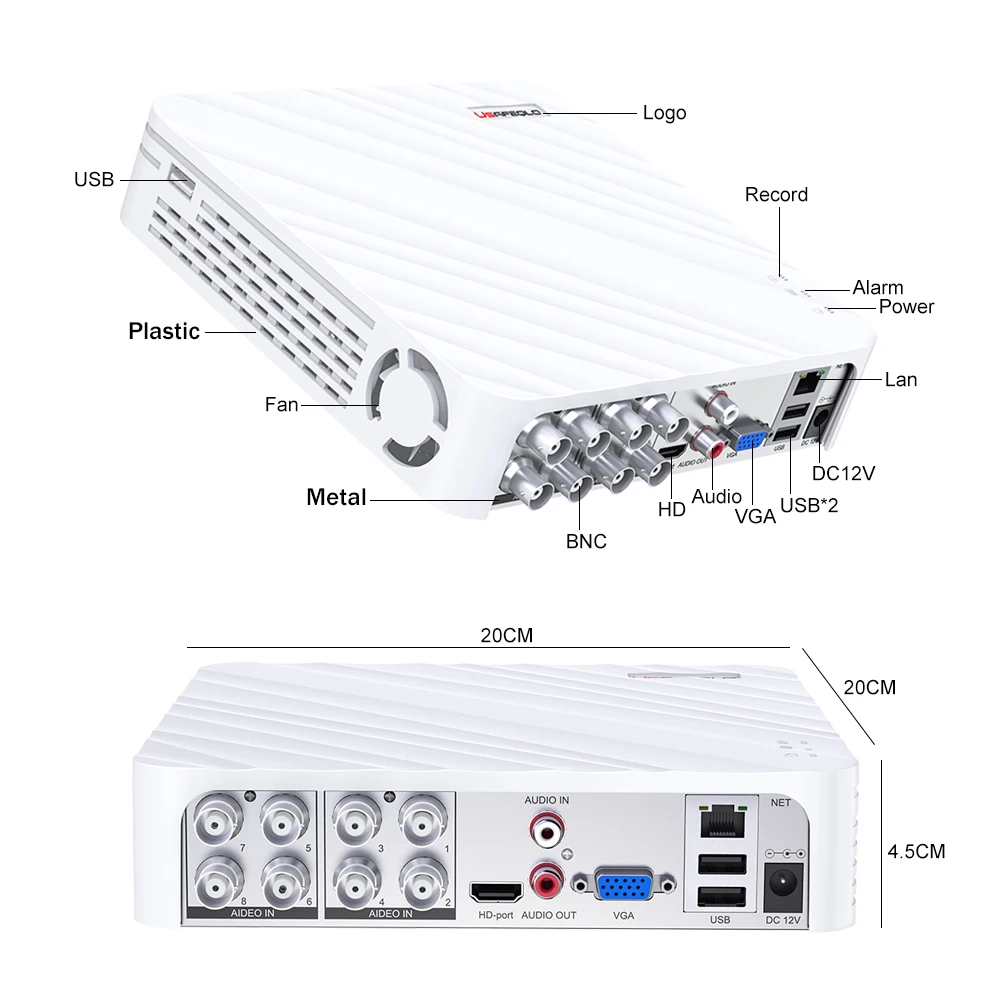

External Interface	Video input	4ch BNC	8ch BNC
	Video output	1ch VGA, 1ch HDMI Compatible
	Loop Vout	N/A
	Audio I/O	1/1
	Alarm I/O	0/0
	Network interface	RJ45 10M/100M self-adaption
	PTZ control	NO
	USB	2* USB 2.0 ports
	HDD	1*SATA ports (Max 14TB/per)
	Wireless	Not support
Genera	Power supply	12V/2A
	Power Consumption	<15W (without HDD)
	Working environment	Temperature:0℃-+55℃,Humidity:10%-90%,Atm:86kpa-106kpa
	Dimension	200mm200mm40mm (Case)
	Weight	950g (Package)
