COOLSERVER R63 4 Heatpipe 2U Server CPU Cooler Workstation Computer Cooling Fan for Intel LGA2011 1700 115X AMD AM4
$49.99 USD$104.19 USD
Color: R63 LGA2011
Product Details
COOLSERVER R63 Series CPU Cooler: Robust Cooling Solutions for Diverse Platforms
This document details the COOLSERVER R63 series of CPU coolers, designed for exceptional cooling performance across a range of processor socket types. The series delivers robust cooling solutions for server, workstation, and high-performance computing environments. This article highlights key features, specifications, and practical usage instructions for the LGA2011, LGA1700, LGA115X, and AM4 variants.
Product Overview

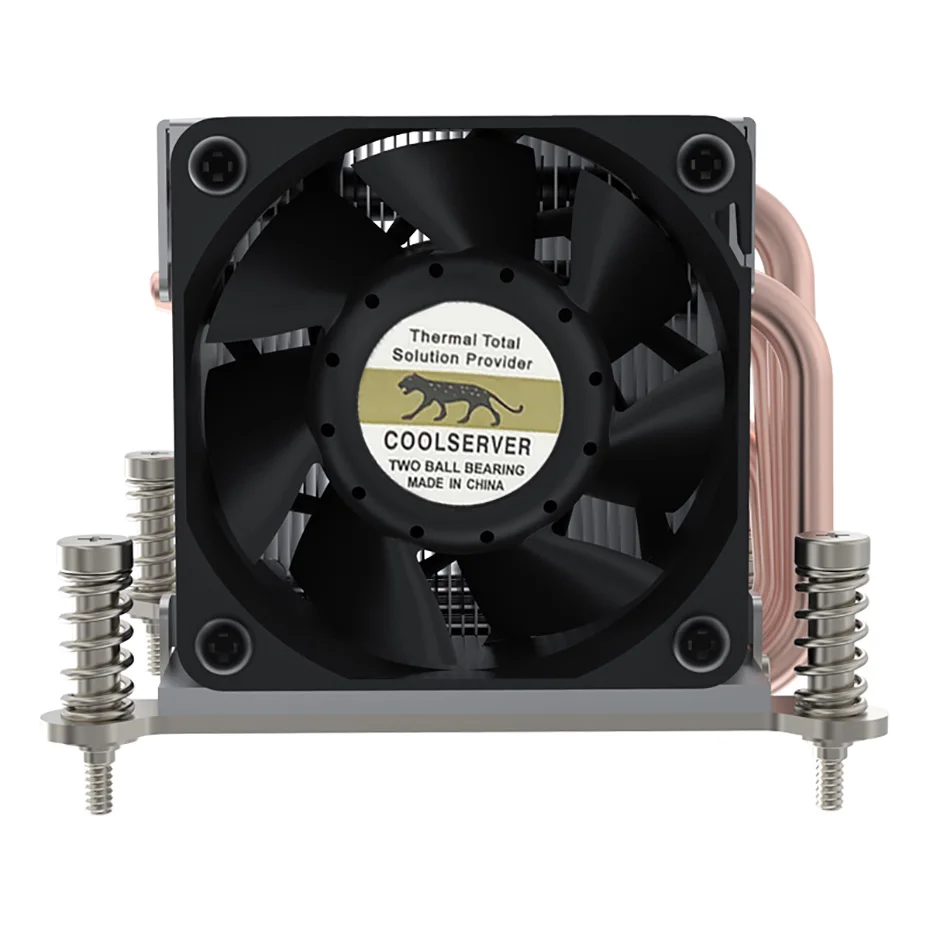

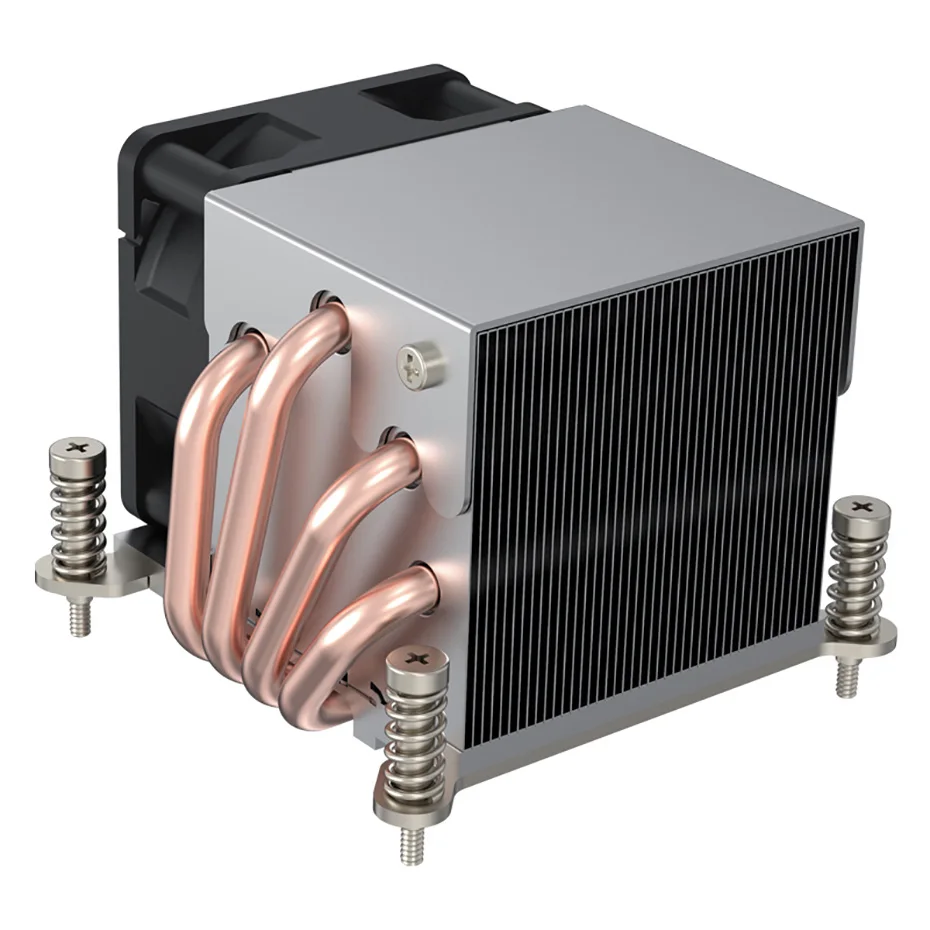

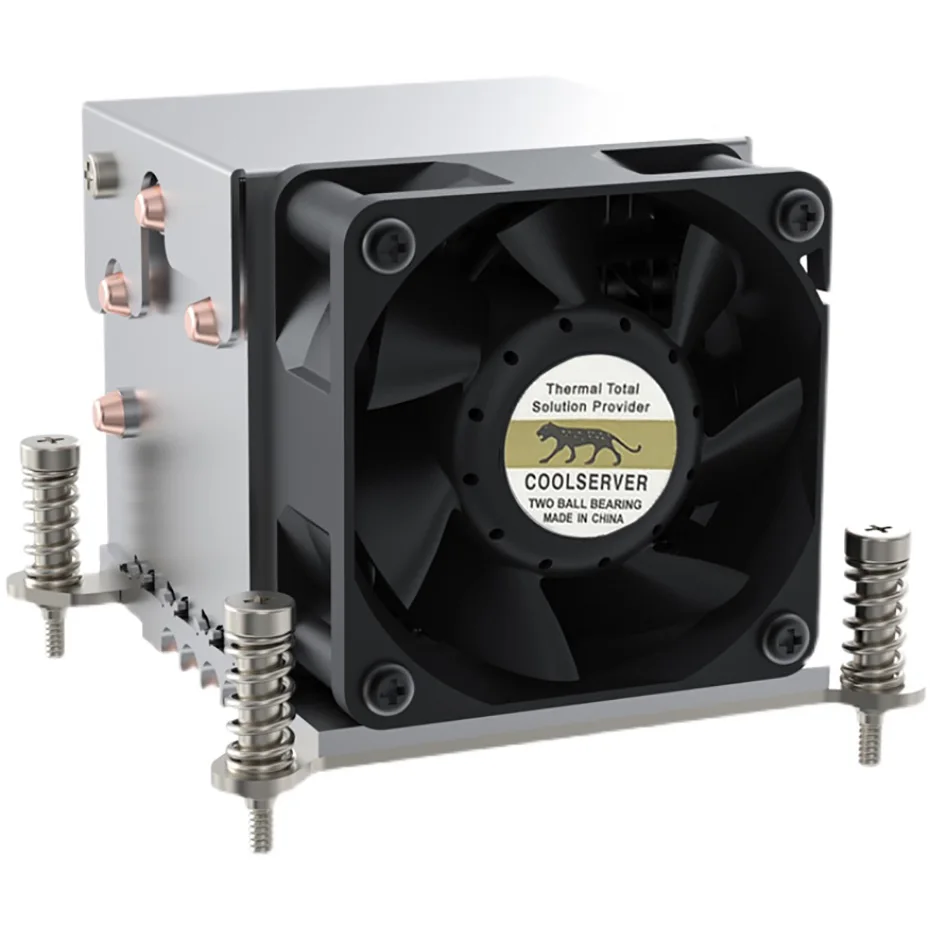

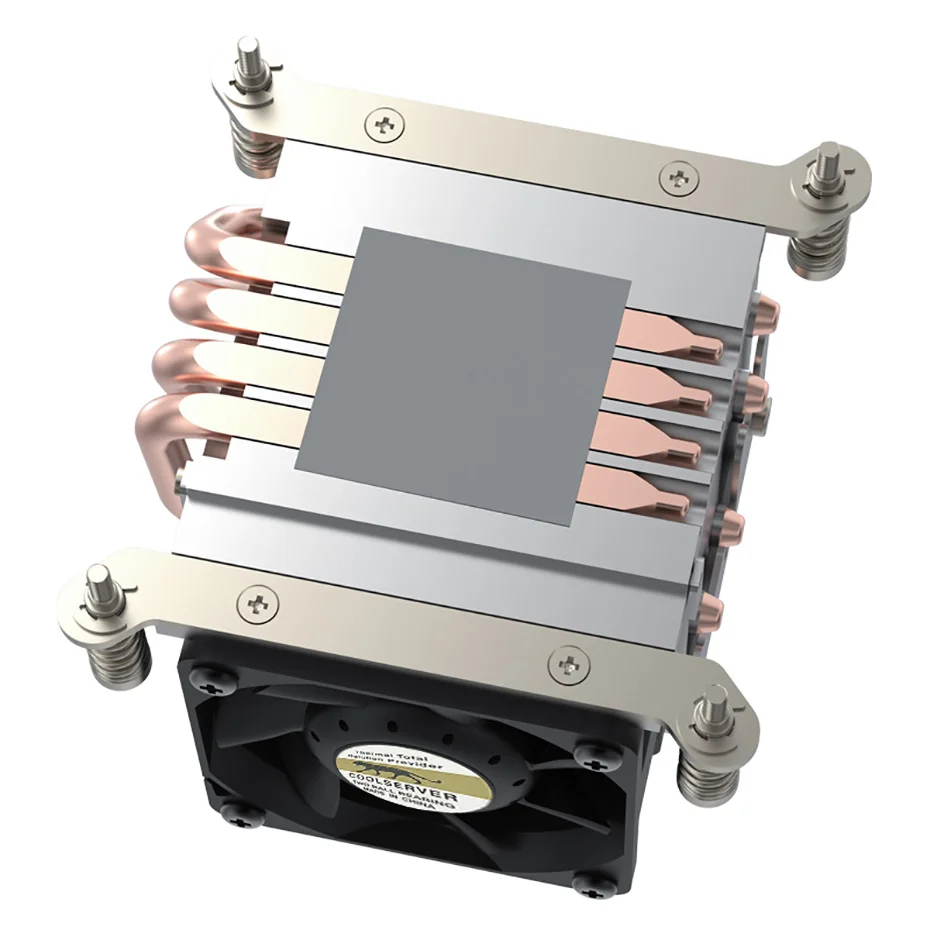

The COOLSERVER R63 series stands out through its efficient heat dissipation and dependable operation. Utilizing a robust aluminum fin design coupled with four copper heat pipes, these coolers effectively remove heat from the CPU, minimizing temperature fluctuations and preventing thermal throttling. The high-quality components are designed to maintain consistent performance and longevity, even in demanding environments.
Key Features and Specifications
The table below summarizes the essential specifications across the different COOLSERVER R63 models:
| Feature | LGA 2011-R63-1 | LGA 2011-R63 | LGA 1700-R63 | LGA 115X-R63 | AM4-R63 |
|---|---|---|---|---|---|
| CPU Socket Type | LGA 2011(Square) | LGA 2011(Rectangular) | LGA 1700(Square) | LGA 115X(Square) | AMD AM4(Rectangular) |
| CPU Hole Distance | 80mm x 80mm | 94mm x 56mm | 78mm x 78mm | 75mm x 75mm | 90mm x 54mm |
| Product Size (L x W x H) | 90mm x 90mm x 65mm | 90mm x 90mm x 65mm | 90mm x 90mm x 65mm | 90mm x 90mm x 65mm | 90mm x 90mm x 65mm |
| Voltage | 12V | 12V | 12V | 12V | 12V |
| Fan Speed | PWM 3000-6800RPM | PWM 3000-6800RPM | PWM 3000-6800RPM | PWM 3000-6800RPM | PWM 3000-6800RPM |
| Noise Level | 49.4dBA (MAX) | 49.4dBA (MAX) | 49.4dBA (MAX) | 49.4dBA (MAX) | 49.4dBA (MAX) |
| Air Volume | 34.74CFM (MAX) | 34.74CFM (MAX) | 34.74CFM (MAX) | 34.74CFM (MAX) | 34.74CFM (MAX) |
| Fan Plug | 4-pin PWM | 4-pin PWM | 4-pin PWM | 4-pin PWM | 4-pin PWM |
| Bearing Type | Double Ball | Double Ball | Double Ball | Double Ball | Double Ball |
| Material | Aluminum fins + 4 heat pipes | Aluminum fins + 4 heat pipes | Aluminum fins + 4 heat pipes | Aluminum fins + 4 heat pipes | Aluminum fins + 4 heat pipes |
| Power Consumption | 165W | 165W | 165W | 165W | 165W |
These specifications underscore the consistent and high-performance design across the entire COOLSERVER R63 series.
Installation Procedure
Proper installation is crucial for optimal cooling performance and system stability. These steps outline the general guidelines. Always consult the specific manual for your chosen COOLSERVER R63 model:
- Preparation: Ensure the system is powered off and disconnected from any power sources. Disconnect all cables.
- Mounting: Carefully align the CPU cooler base plate with the processor socket's mounting holes. Ensure compatibility between the CPU cooler size and socket layout.
- Securing: Use the provided screws to secure the cooler base to the motherboard. Apply slight but even pressure during screw tightening.
- Connecting the Fan: Carefully connect the 4-pin PWM fan cable to the corresponding header on the motherboard.
- Verification: Double-check all connections and ensure secure mounting. Turn the system on and monitor the system for any unusual operation before proceeding with other installations.
Compatibility and Usage Recommendations
These coolers are designed to accommodate the specified socket types within the model name. Careful verification of compatibility before installation is imperative to avoid potential damage to the CPU or motherboard. The product is ideally suited for use in computers requiring high CPU cooling performance, including workstations and servers.
Troubleshooting
Should you encounter any issues during installation or operation, consult the detailed Troubleshooting section within the specific product manual. This section often provides solutions to common problems or misconfigurations.
Conclusion
The COOLSERVER R63 series offers a comprehensive range of cooling solutions for a variety of processor architectures. Careful attention to compatibility and precise installation ensures optimal performance and longevity. This series is well-suited to a broad range of high-performance
Using FIN and buckle FIN process
1. Between the radiator fin and the copper tube, the fin manufacturing process is adopted, and the fin and fin technology are combined to increase the surface heat dissipation area and stabilize the fin spacing.
2. The fins of the heat sink adopt fin technology not only to increase the firmness, but also to keep the spacing of each fin consistent. The airflow generated by the fan passes through each fin evenly and smoothly, thereby reducing wind cutting noise and enhancing heat dissipation. performance.
Using 6025 fan
Imported lc original components, silent, stable, strong wind, large air volume, fast and efficient heat dissipation
