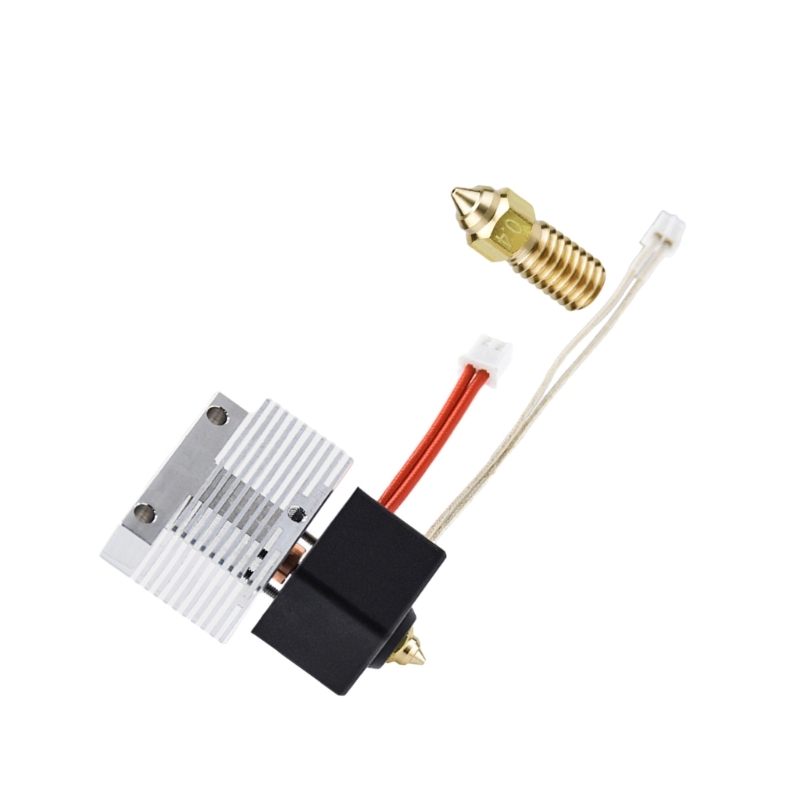

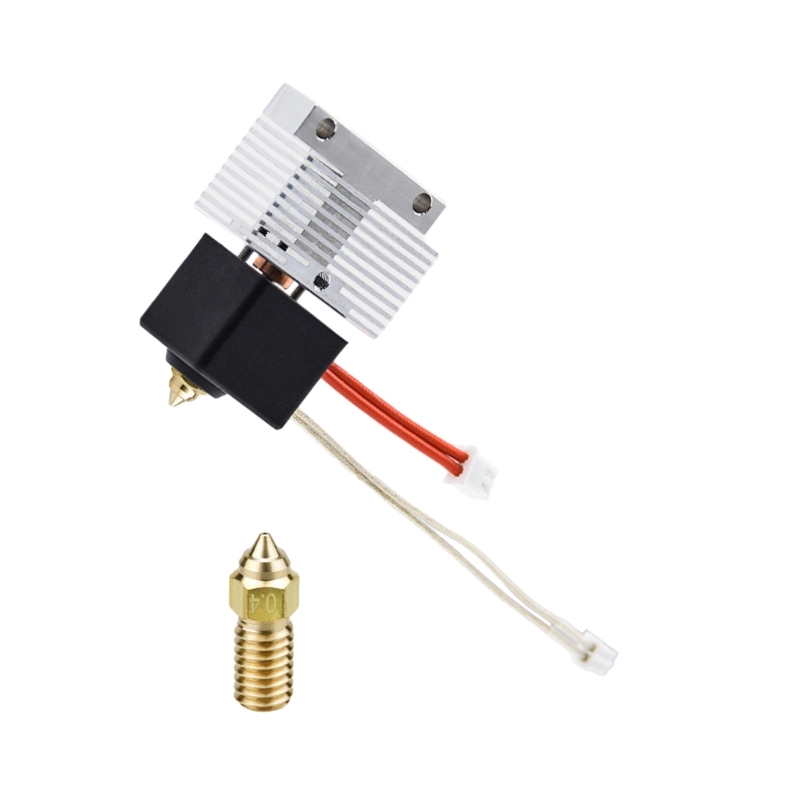

Neptune 4/4 Hotend Bimetal Nozzle & Thermistor for Elegoo 3D Printer – Upgraded Extruder Parts

For Neptune 4/4 Hotend Bimetal Nozzle 3D Printer Accessories

A Comprehensive Overview of the Upgraded Extruder Parts

This document provides a detailed overview of the For Neptune 4/4 Hotend Bimetal Nozzle, an enhanced 3D printing component designed for the Elegoo Neptune 4 3D printer. It highlights the key features, specifications, and proper usage instructions, aiming to maximize user satisfaction and print quality.

Product Overview

The For Neptune 4/4 Hotend represents a significant upgrade for 3D printing enthusiasts seeking enhanced performance and reliability. Constructed from premium materials, this hotend boasts a sophisticated design intended to address common challenges encountered during 3D printing, including inconsistent temperature control, clogs, and premature wear. The product's precision engineering guarantees optimal performance, ensuring stable, high-quality prints with reduced print failures.

Key Features and Benefits

This hotend's innovative design stands out through its multifaceted features:

• Precise Temperature Control: The incorporated thermistor (NTC3950 100K) and 24V 50W heating rod provide an exceptional level of temperature precision. This allows for consistent melt temperatures of filaments, crucial for producing high quality layers in 3D prints. Consistent and predictable temperature control minimizes variations and improves the print's uniformity and dimensional accuracy.
• Optimized Material Flow: The 45° chamfered throat thread design ensures smooth material flow, preventing clogs and ensuring consistent filament extrusion throughout the print process. This characteristic of the design is paramount to guaranteeing an uninterrupted material supply, thereby minimizing the risk of interruptions and production issues.

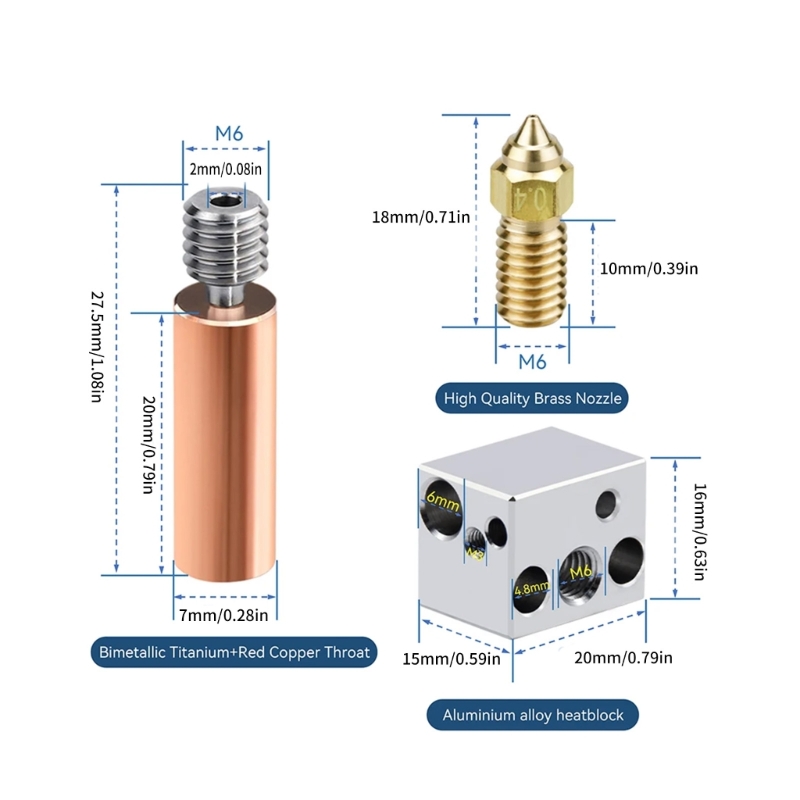

• Compatibility and Durability: The flat and smooth nozzle cross-sectional area ensures high compatibility with various 3D printing filaments and accessories. Furthermore, the choice of durable 6063 aluminum alloy ensures high thermal conductivity and resistance to high temperatures (up to 300°C). This exceptional high-temperature resistance allows the hotend to withstand prolonged use and demanding printing parameters without damage. The precision machining and surface finish (0.5) of the parts minimizes material expansion and contraction during use.
• Enhanced Durability and Resistance: The brass material possesses exceptional thermal conductivity, along with high hardness. The exceptionally low roughness of the inner wall (Raless than 0.4) drastically reduces the incidence of blockage, further improving the print quality and ensuring a consistent material feed. The resistance to corrosion, water damage, and rust adds significantly to the product's extended lifespan and reliability, making it a long-term investment for 3D printing.

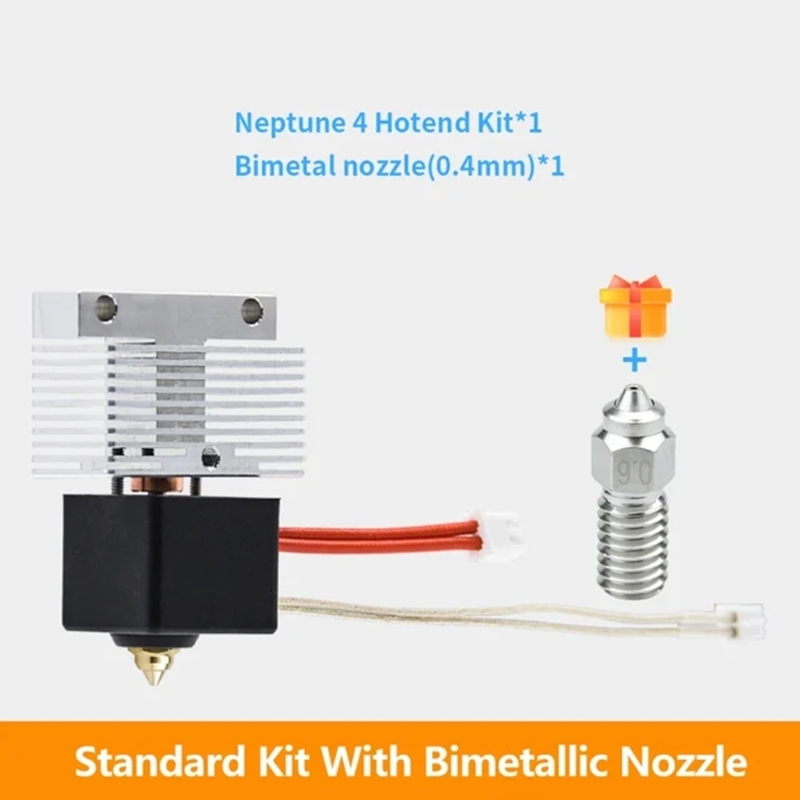

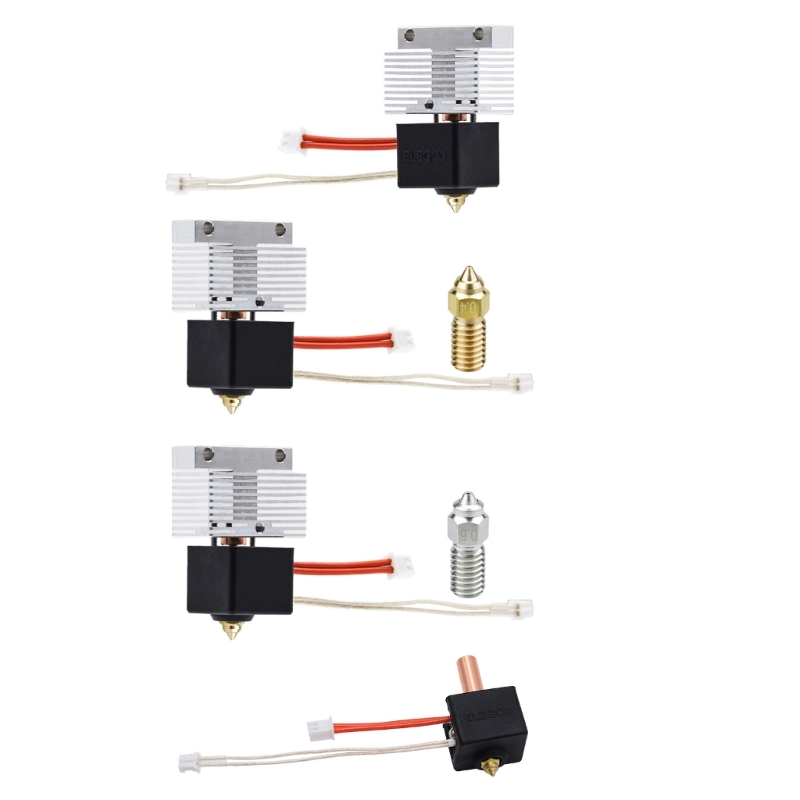

• Multiple Variant Options: The product offers various configuration options (A, B, C, and D) to cater to diverse user preferences and applications. These options include standard spray nozzles, complete kits with interchangeable nozzles (0.4mm brass or bimetallic), and variations with or without heat dissipation blocks, enabling customization to meet specific printing requirements and preferences.

Technical Specifications

• Material: Metal (specifically, 6063 aluminum and brass)
• Thermistor: NTC3950 100K
• Heating Rod: 24V 50W
• Size: Mixed, as depicted in the product images.
• Compatibility: Specifically designed for Neptune 4/4Pro 3D Printers.
• Packaging: 1 Set

Installation and Usage Instructions

Proper installation and usage are paramount for achieving optimal results.

Carefully review the product packaging and accompanying instructions. Ensure thorough understanding of the specific model (A, B, C, or D) before beginning installation. Replace the existing hotend with the provided replacement.

Align the parts meticulously. Tighten the connections securely, yet avoid over-tightening, which could lead to damage. Utilize calibrated tools and torque values listed in the instructions, if applicable.

Once installed, calibrate your 3D printer's hotend temperature settings according to your filament material's specifications. Carefully monitor the extruder during initial calibration tests.

Troubleshooting

Common issues encountered during installation or use, along with potential solutions, may be found in the user manual associated with the particular Neptune 4/4Pro model. Contact support when needed.

Safety Precautions

Handle the hotend components with care, as they may still be hot after use. Allow adequate cooling time before handling the components. Adhere to all safety guidelines outlined in the user manual.

Conclusion

The For Neptune 4/4 Hotend offers a comprehensive upgrade to 3D printing equipment, providing precise temperature control, optimized material flow, and enhanced component durability. Accurate installation and use, along with diligent consideration for the specific product variant selected, are essential for experiencing the full potential of this advanced 3D printer accessory.
