Mechanical IR-Cut Filter

The camera has a built-in mechanical IR-cut filter placed in front of the image sensor to filter out infrared light in the daytime, producing better color reproduction. At nighttime or when the built-in light sensor detects low-light conditions, IR-cut filter is automatically removed to achieve better light sensitivity.

An Automatic IR Mechanical Cut Filter blocks infrared light but allows colors visible to the naked eye to pass through. During low/no light conditions, the IR Cut Filter moves away from the lens to let in100% of the infrared light for maximum night vision performance. This results in the camera image changing to Black and White for better image quality.

NOTE: Not all Day/Night Cameras have an Auto IR Cut filter.

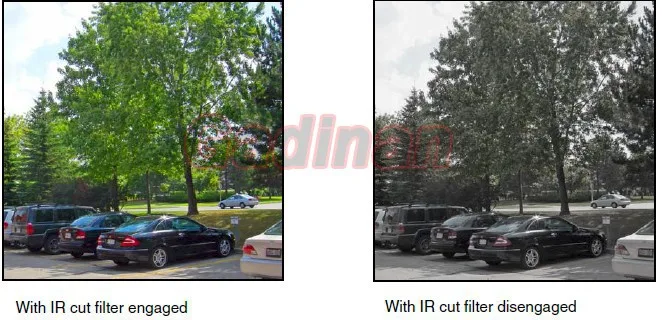

During the day, the IR cut filter blocks any infrared light from entering the lens for true color reproduction.

High Resolution:

By adopting CMOS Board ,the camera produces clear picture up to 1000 TV Lines.

Adaptive Tone-curve Reproduction (ATR)

By adopting DSP Technology, automatically, detect dark zone of the image, perform real-time color
Adjustment & correction on backlight & dark zone, reproduce
Natural, clear image.

Super Head-light Suppression

By adopting unique DSP head-light suppression Technology
To ensure the image exposure evenly, view dark object which around strong light clearly.

DNR (Digital Noise Reduction)

By adopting unique digital processing technology, it can reduce the luminance
And chrominance noise separately, and produce clear, obvious images by not affecting image resolution.

Specification: Camera Image Sensor 1000TVL Pixel NTSC:720(H) x576(V) ;PAL: 720(H) x 480(V) Scanning System 2:1 Interlace Sync System Internal / External Sync. OSD not Video Output 1.1Vp-p/75Ω High Resolution 1000 TVL S/N Ration >50dB Min. iIllumination 0 Lux (When IR LED On) Shutter Speed Auto: 1/60-1/100,000sec (NTSC); 1/50-1/120,000sec (PAL) Fixed: 1/50, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000sec White Balance ATW / Push / User1 / User2 / Anti CR / Manual / Push Lock Selectable      ATW: 1080K-10500K BLC BLC / HLS (Head-light Supression) Selectable ATR On (Brightness, Contrast adjustable) / Off Gain Control 6- 44 .8 dB Adjustable(Manual Shutter, AGC) 2D-DNR On/Off Motion Detection On/Off (4 zone) Privacy Masking On/Off (4 zone) Mirror On/off Day &Night Color / B&W / Auto Selectable   Image Adjustable Brightness / Contrast / Sharpness / Hue / Gain Adjustable Lighting proof Multi-level Lighting Proof Lens Lens 2.8mm mega-pixel lens General IR 24 F5 IR led board  IR Distance 10dm Power Supply DC12V Power Consumption 400mA Working Temperature -10°C~+50°C

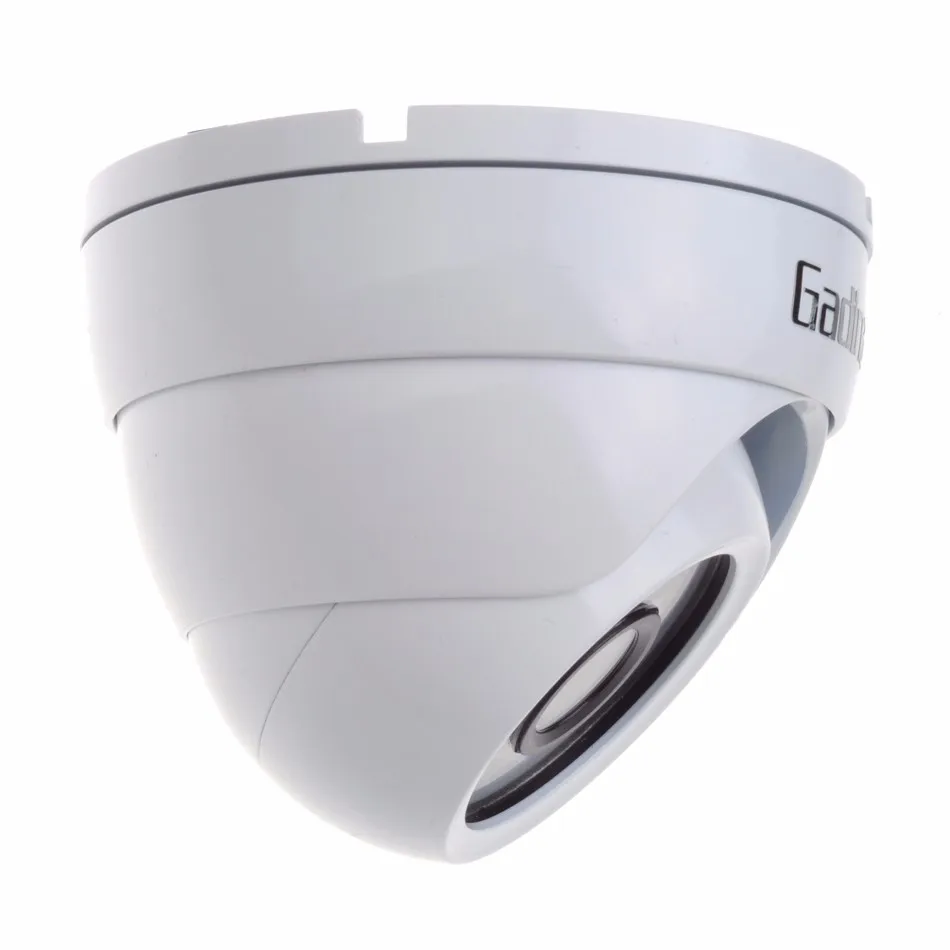

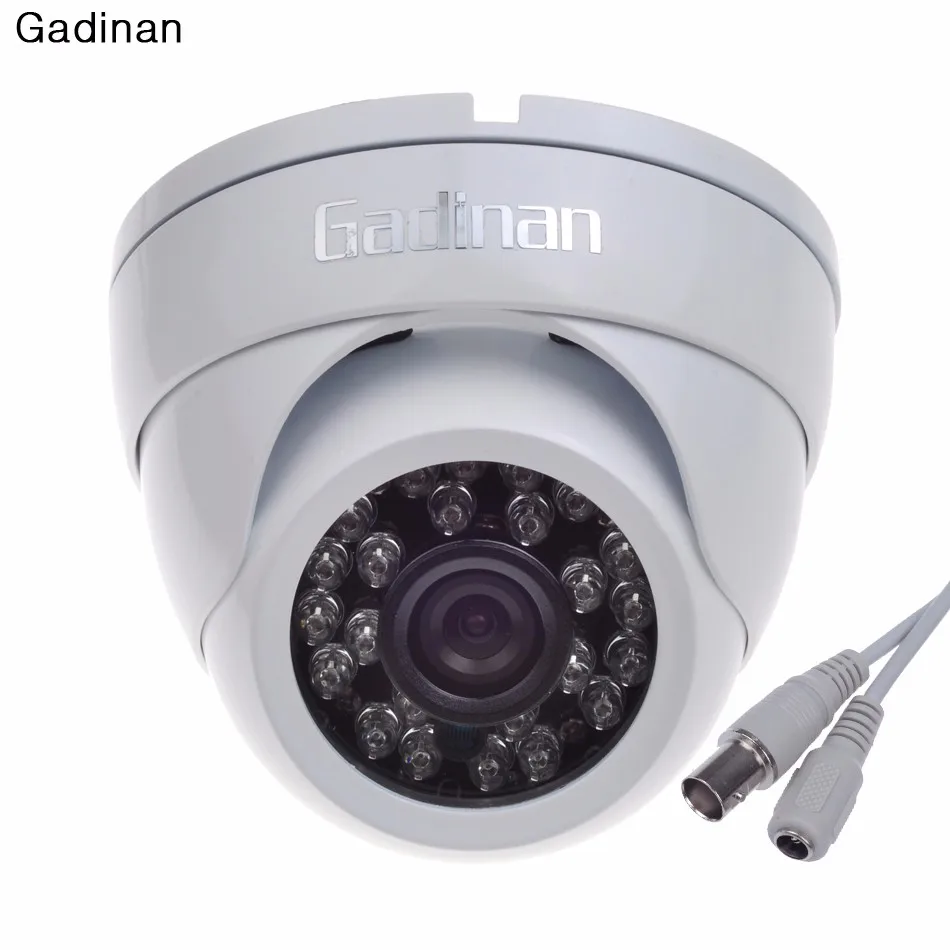

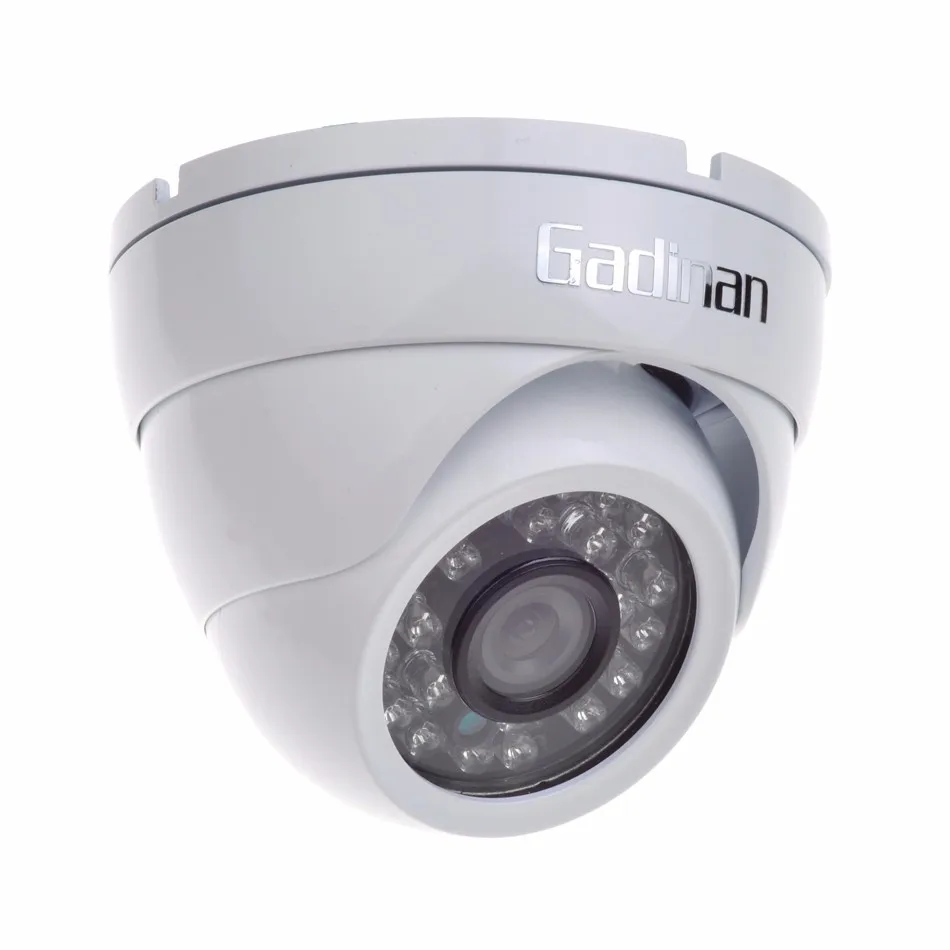

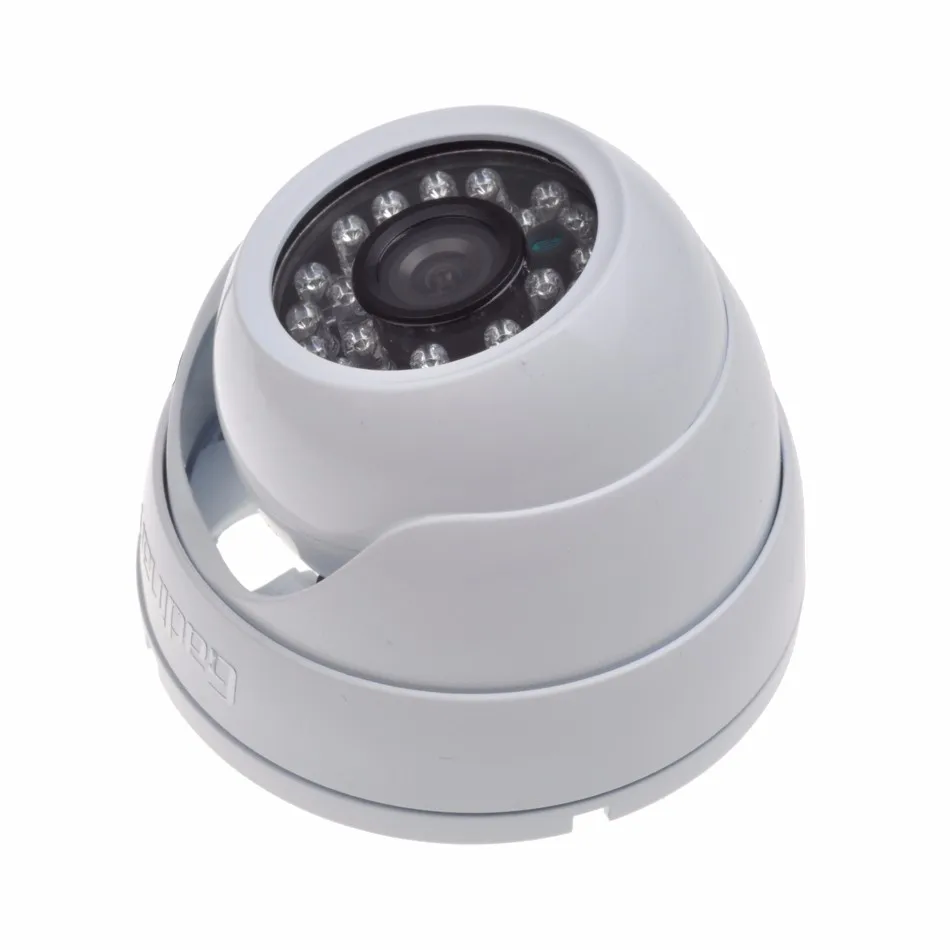

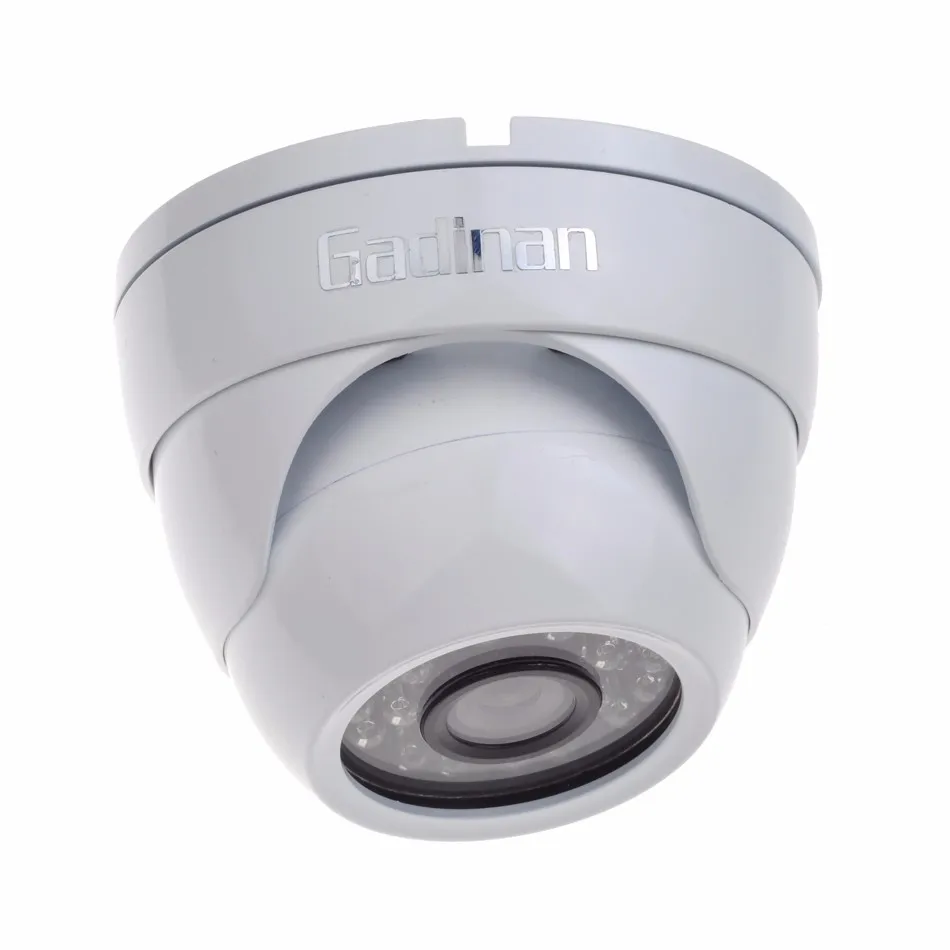

Package List: 1 x Metal Dome Camera(only 2.8mm lens)
