Multipurpose 0-230V Output LED Lamp Strips Beads Test Inspection Tool Measurement Instruments TV Backlight Tester Meter

      Multipurpose 0-230V Output LED Lamp Strips Beads Test Inspection Tool Measurement Instruments TV Backlight Tester Meter
Feature:
High brightness and high voltage output, compatible with LED lamp beads, LED lamp string, LED panel, integrated optical LED and other lamp panel lighting.
Display output voltage and output current. The voltage and current are intelligently adjusted. Automatically adjusted according to the number of LED lights to prevent burnout.
Support testing capacitor voltage and diode voltage. You can test LED strips without disassembling the panel, which can save you a lot of time.
Safety protection: double (hot and cold) isolation.
Safety design: slow boost, soft start. Steadily increase the current.
The gradually brighter light protects your eyes.
This LED TV backlight tester can find the defective LED on the light bar within a few seconds through automatic voltage and current adjustment.
If there is a problem with the LED light bar, you can replace it or replace the bad LED light bead.
Suitable for any size LED TV, perfect backlight inspection and maintenance tool.

Specification:
Material: ABS + electronic components
Output voltage: 0-230V
Output current: 0-25mA

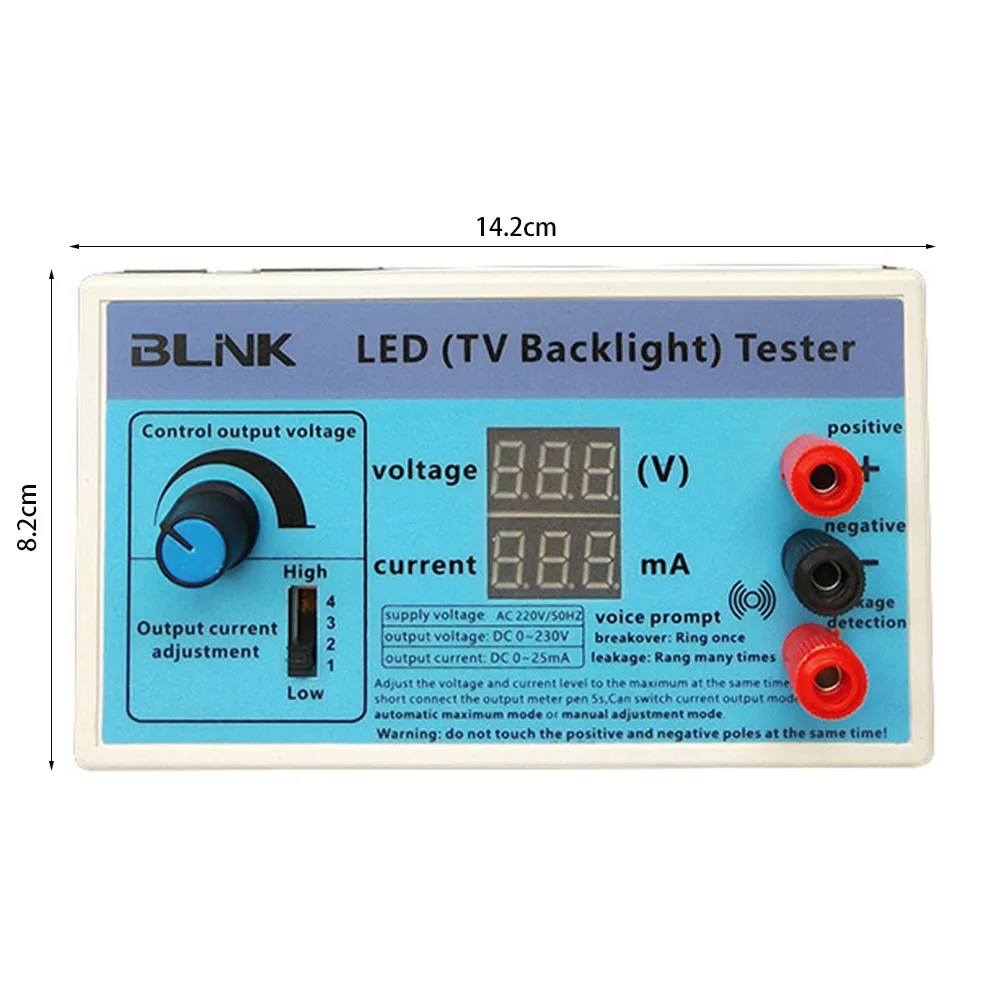

Item size: 14.2 * 8.2 * 4cm / 5.6 * 3.2 * 1.6in

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

      1 X Tester
1 X Test Line
