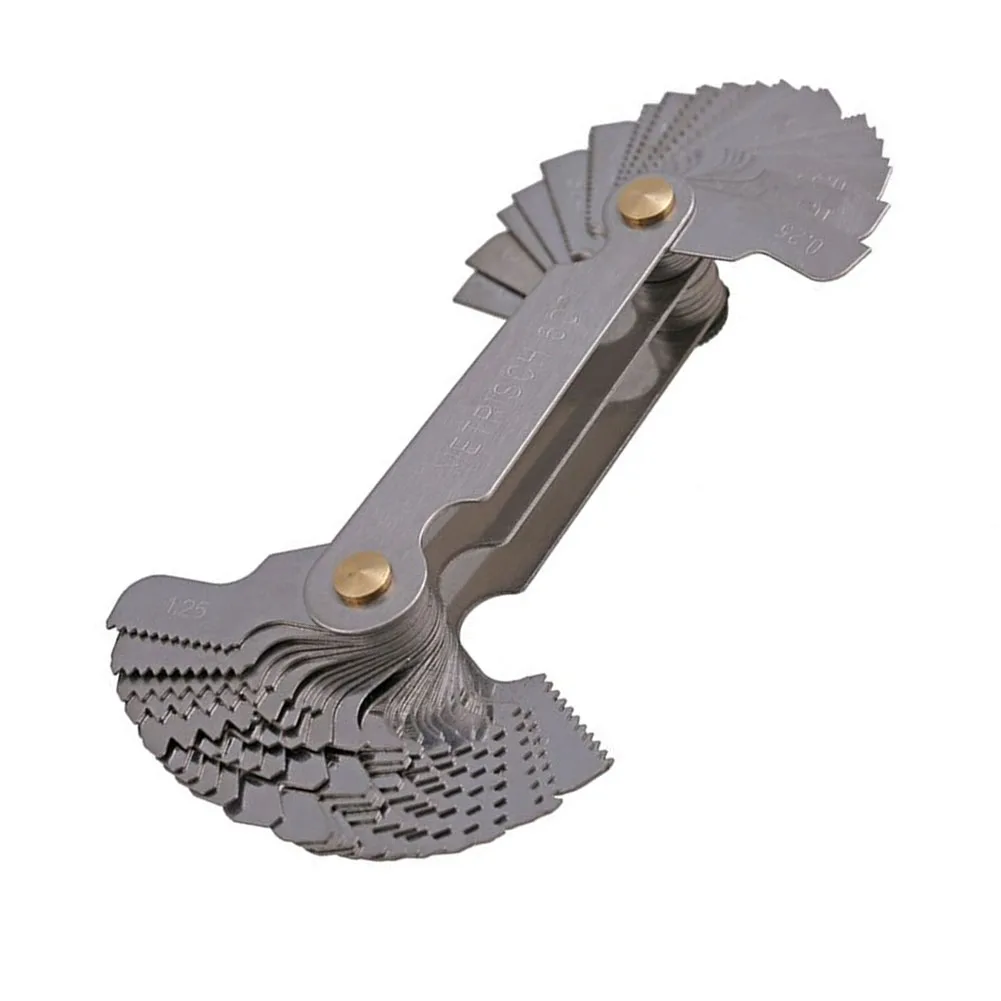

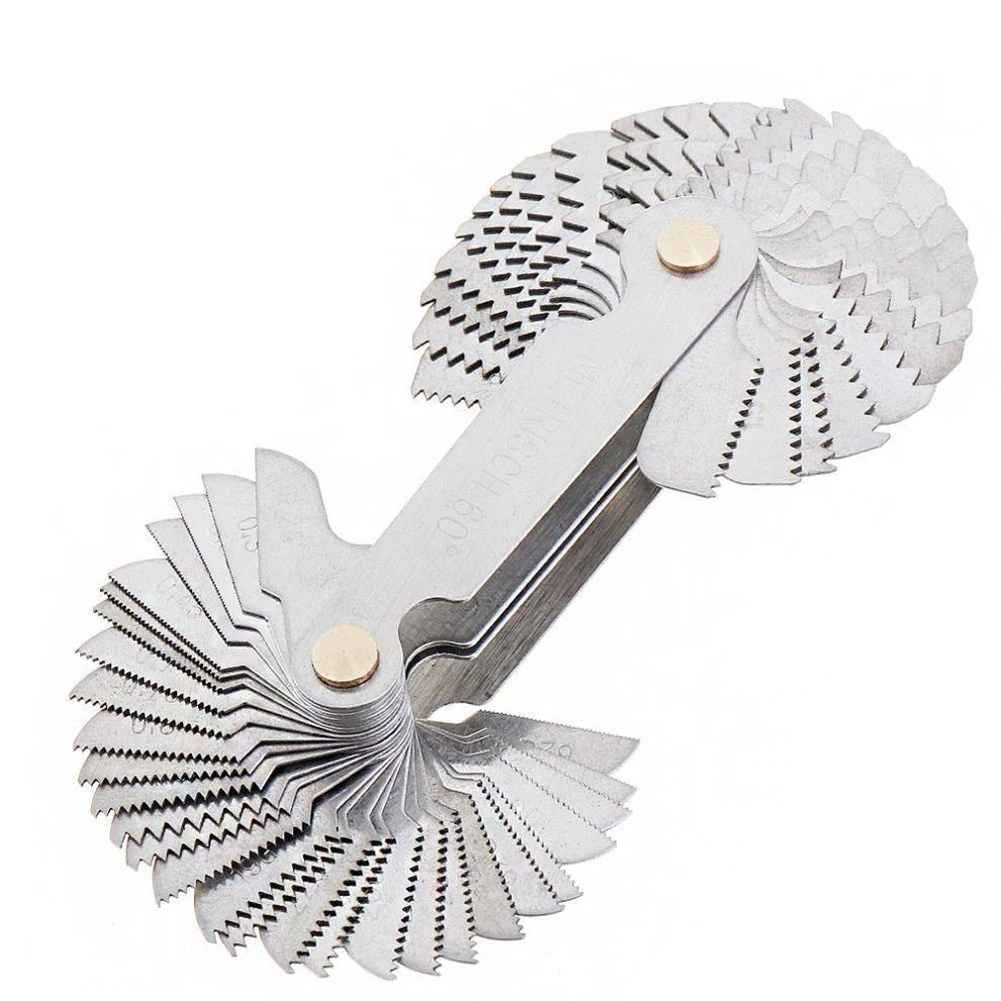

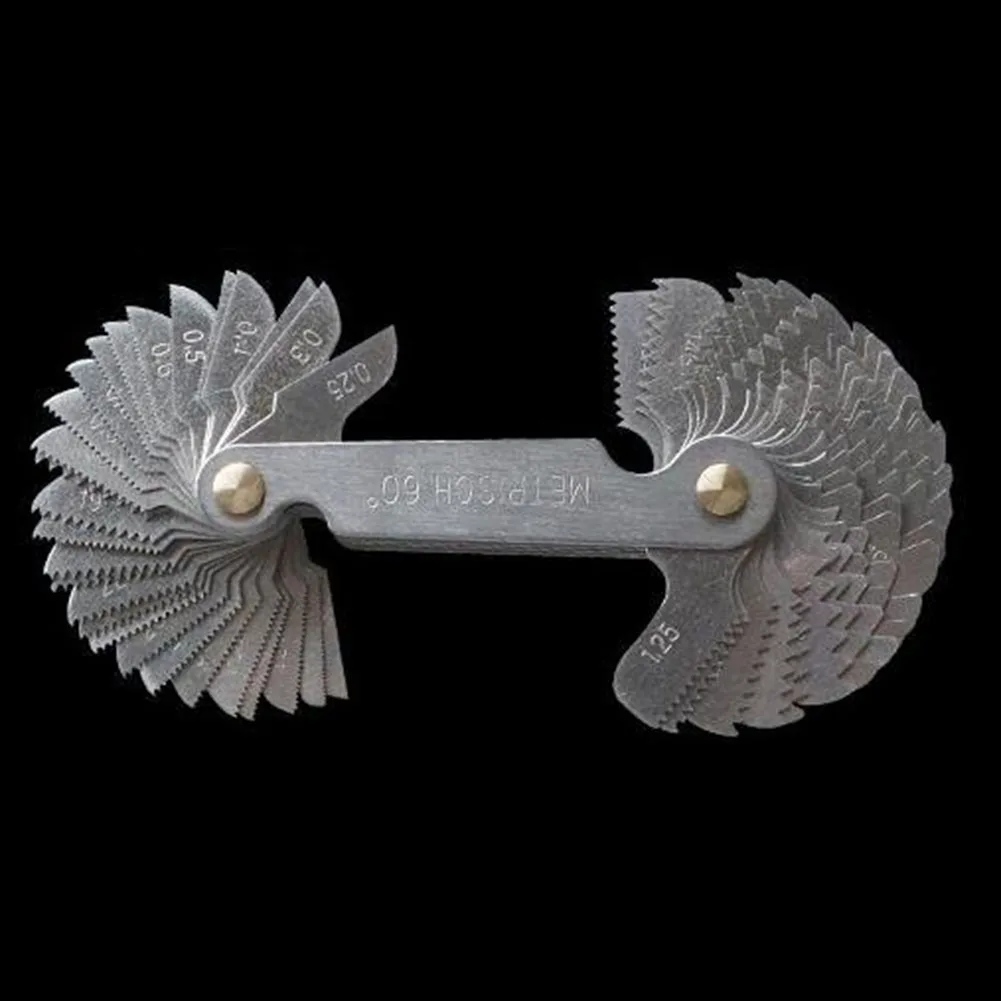

Must Have Metric and Imperial Thread Pitch Gauge 58 Blades Stainless Steel Locking Device Essential for Metal Lathe Cutting

Features:

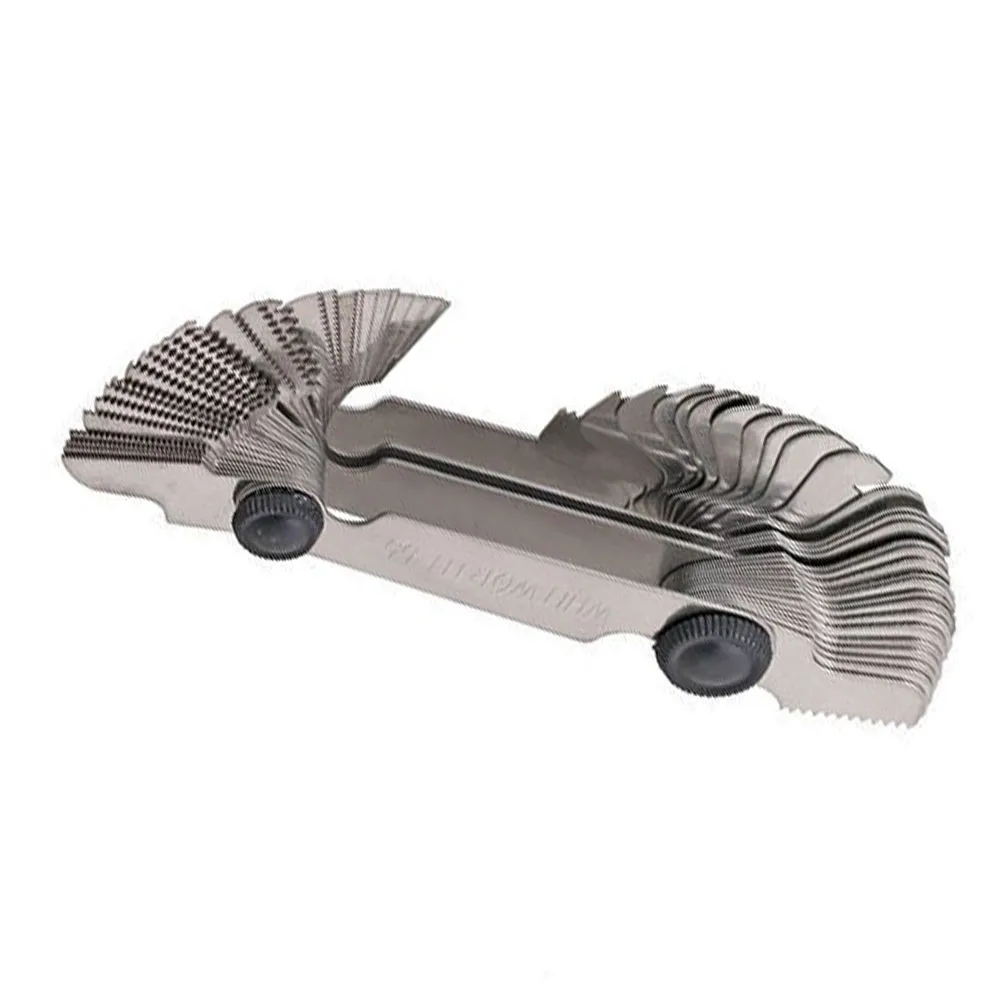

*- It is a 55 degree and 60 degree thread/pitch gauge with locking device.

*- The thread is an inch thread, the thread angle is 55 degrees, and the flattening height is H/6. G stands for cylindrical thread.

*Metric threads include ordinary threads (tooth angle 60°); trapezoidal threads (tooth angle 30°); sawtooth threads (tooth angle 33°); square threads, etc. (This product is suitable for 60-degree ordinary threads).

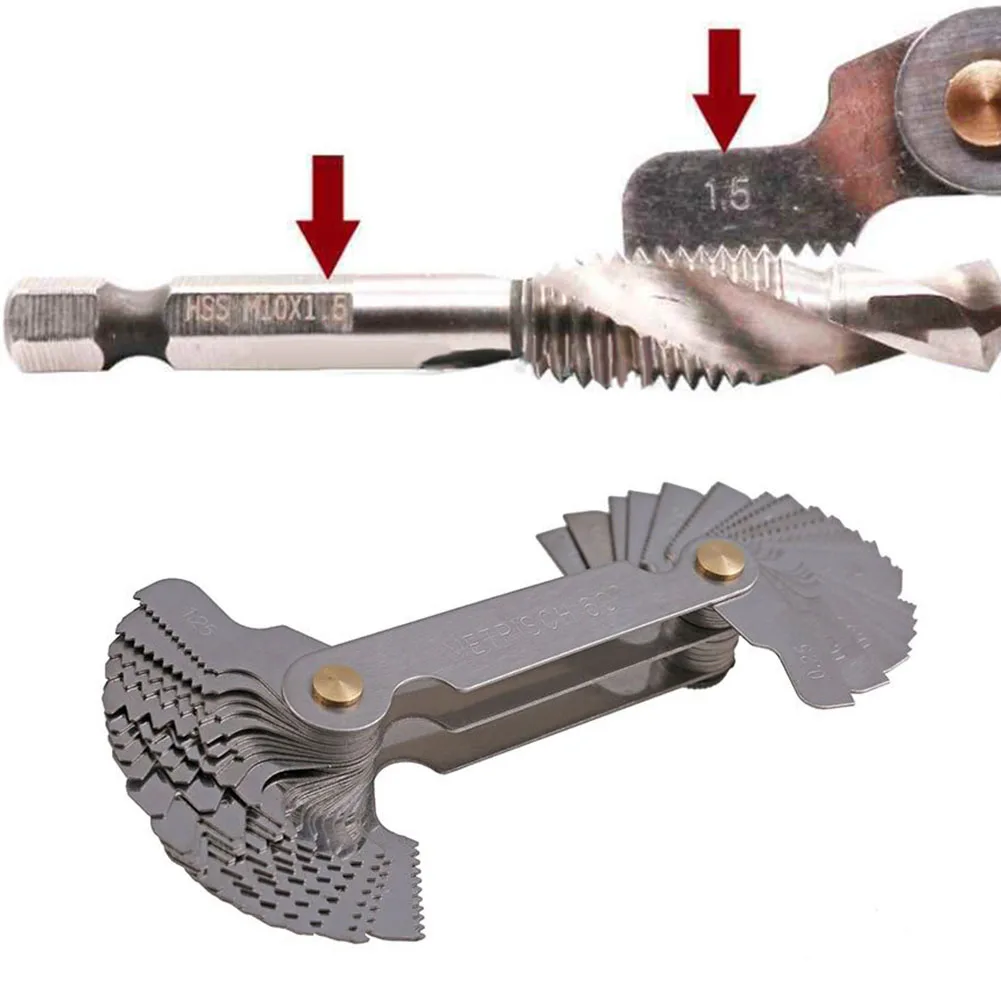

*- It is useful to check the tool angle when cutting threads on a metal lathe.

*- Check the angle of the thread cutting tool on the V-groove of the gauge.

Specification:

Material: Stainless steel

Number of blades: 58 pieces

Standards: Metric and Imperial

Type: Thread Gauge

Color: silver

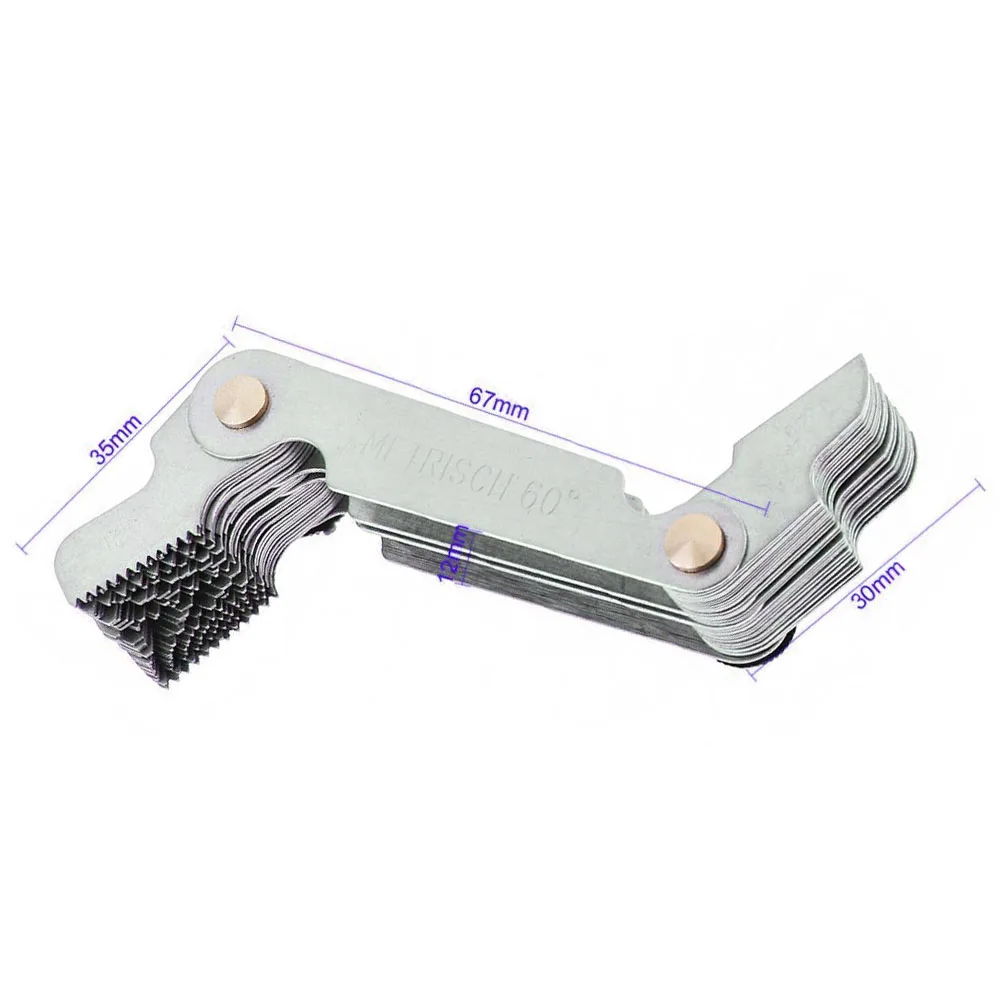

Blade thickness: 0.4cm

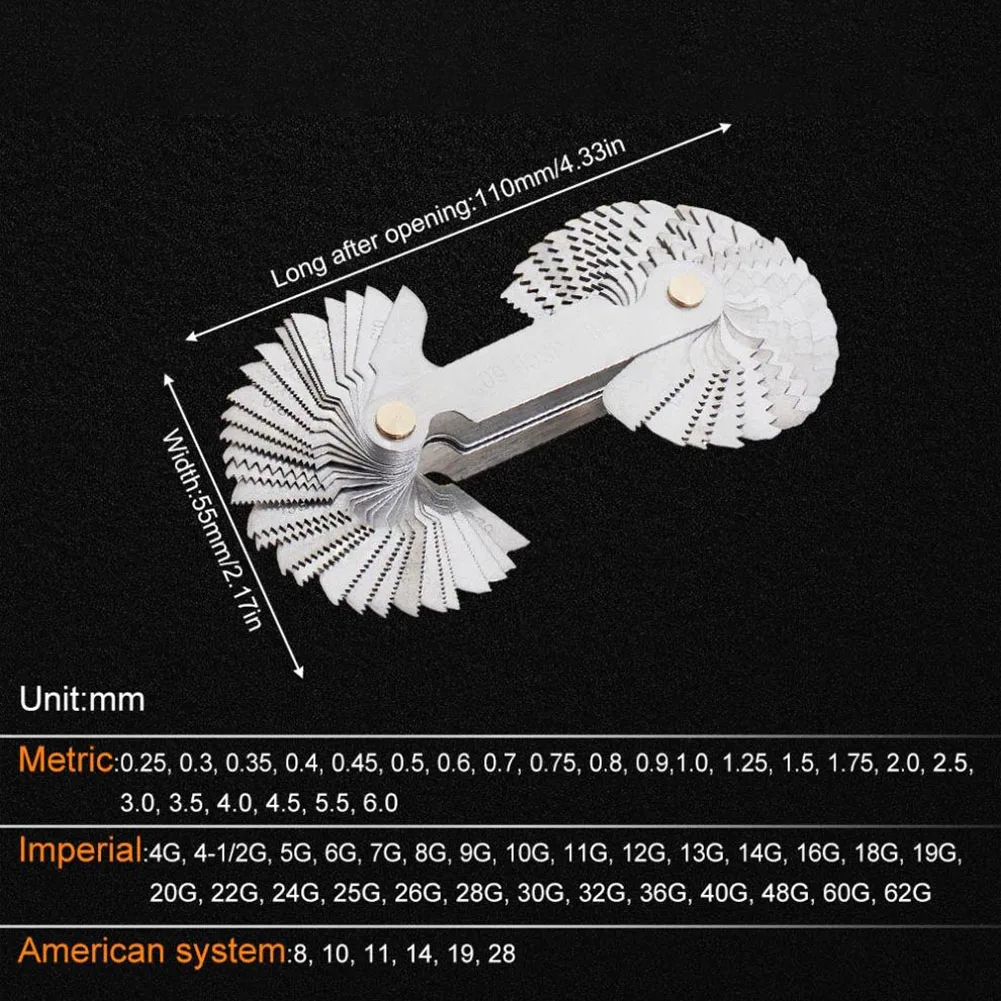

Measuring range:

- Wyeth 55°: 4G, 4 1/2G, 5G, 6G, 7G, 8G, 9G, 10G, 11G, 12G, 13G, 14G, 16G, 18G, 19G, 20G, 22G, 24G, 25G, 26G, 28G, 30G, 32G, 36G, 40G, 48G, 60G, 62G

- Metric 60°: 6.0, 5.5, 5.0, 4.5, 4.0, 3.5, 3.0, 2.5, 2.0, 1.75, 1.5, 1.25.1.0, 0.9, 0.8, 0.75, 0.7, 0.6, 0.5, 0.45, 0.4, 0.3 5 , 0.3, 0.25

- US 60°: 8, 10, 11, 14, 19, 28

Package Included:

1 x Screw Gauge Kit

Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
