NEW RAYKUBE Q1 Electronic Lock Tuya Smart Lock Knob Bluetooth Smartlife Cylindrical fingerprint Electronic Code Lock APP Control

Features

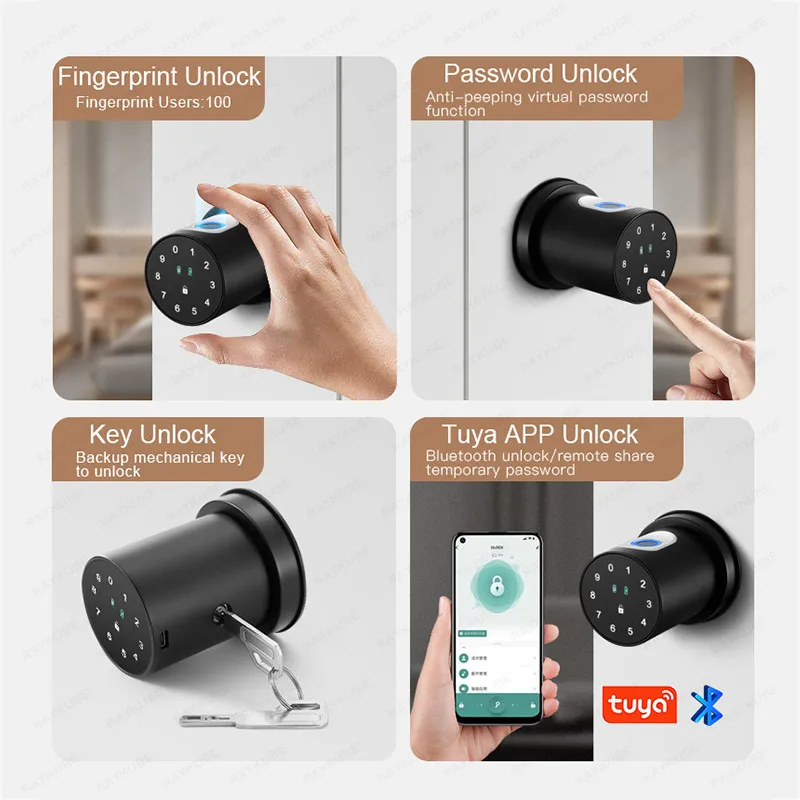

• Unlock methods: Tuya APP (Bluetooth ) / Fingerprint / Password / Key Unlock

• Bluetooth connect to Tuya APP, Temporary Password Remotely Control, , convenient and fast

• Add Bluetooth gateway also can connect to WiFi

• Temporary Password；Timed Password；Support Normal Open Mode (access free)

• Virtual Password Anti-peeping Unlock Supported

• Powered by 4*AA battery, Battery life long to 8 months

• Low battery warning displayed directly on the lock

• Mechanical keys and emergency power supply (USB) can be used when the door lock is out of power.

Parameter

• Unlock methods : Fingerprint/ Password/ Key/ Bluetooth

• Setting method: Bluetooth connection

• Fingerprint head type : Semiconductor fingerprint head

• Fingerprint head: used to identify fingerprints for unlocking

• False recognition rate : <0.001%

• Fingerprint resolution : 508 DPI

• Sensor Pixel : 140 X140

• Refusal to be candid ( FRR) : <1.0%

• Unlock Time: <1.5 seconds

• Key: for mechanical emergency unlocking.

• Password: 8-10 Bit Password is required. A repeatable digit with the function of a virtual password.

• Lock Mode: manual/automatic

• User capacity : 100 Fingerprints, 100 Passwords

• Working Temperature: -20-60°C

• Voltage range: 4-6 V

• Low alert : 4 V

• Working Current: < 250 Ma

• Standby Current: < = 30ua

• Power Supply : 4*AA batteries

• Emergency Power Supply: USB

• Hint: Lights/buzzers/Mute

• Unlock indicator: green light indicates successful verification, red light indicates verification failure.

• Battery indicator: The battery is normal, and the green light is on after

• Unlocking. When the battery is low, the red light turns on after unlocking.

• Set Button: used to set and force the recovery of factory settings.

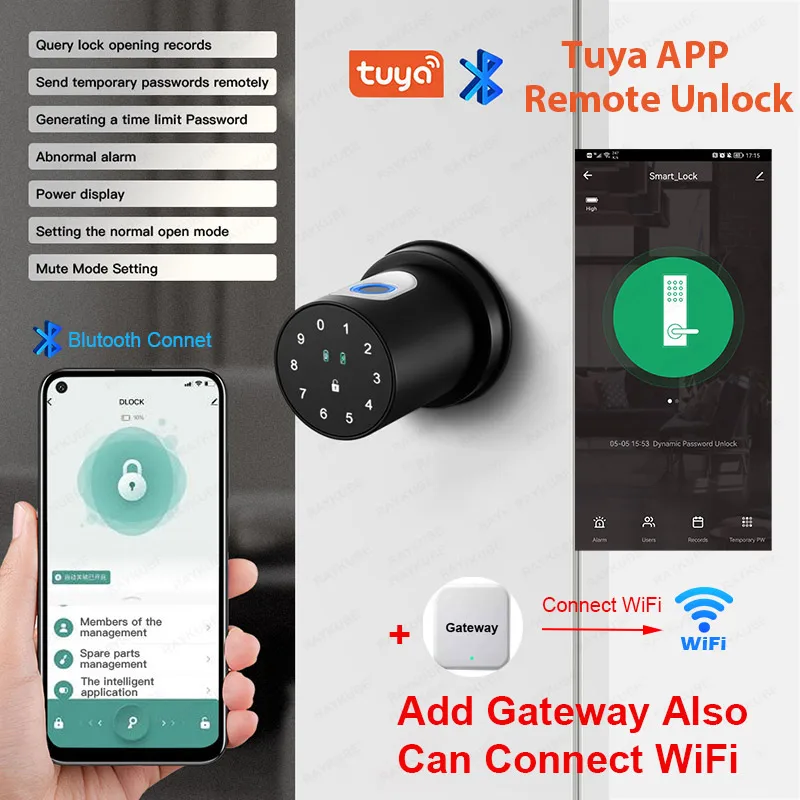

Tuya APP Temporary Password Remotely Unlock

• Bluetooth connection ; Easy to connect and save power

• Add Bluetooth gateway also can connect to WiFi

When not at home, you can use the Tuya app to generate a temporary password to unlock



If the fingerprint lock has no power, it can be unlocked with mobile power supply or mechanical key

Q1 has automatic locking function, Not afraid to forget to lock the door

Normally Open Mode， Setting More Convenient To Open The Door Frequently

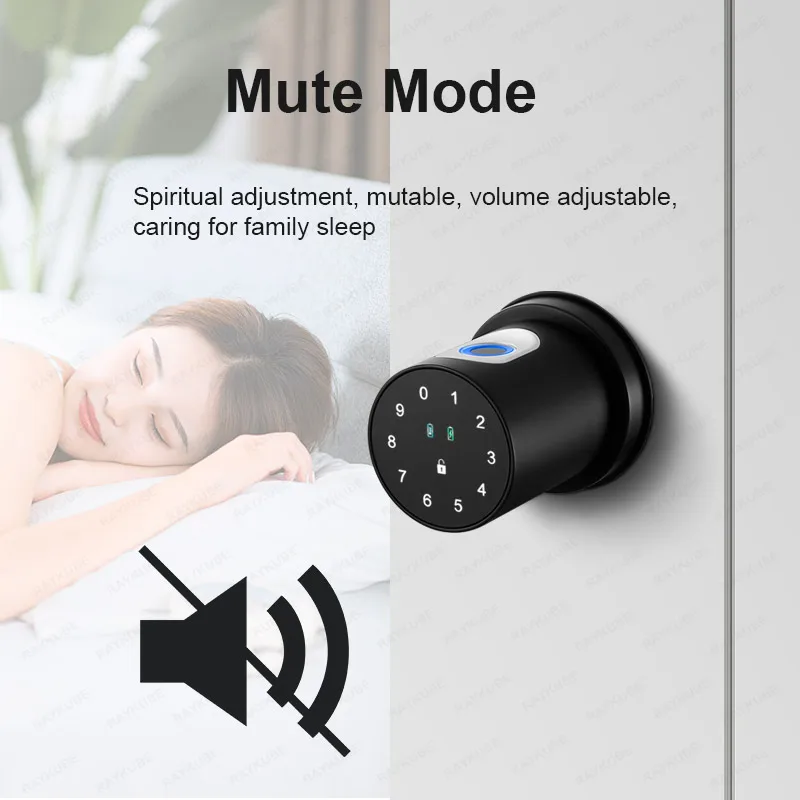

Spiritual adjustment, mutable, volume adjustable, caring for family sleep

Virtual Password，Anti-peeping Unlock

Anti-peep virtual password, enter it casually, as long as one of them is correct. Safe and Reliable

Home bedroom, study, office, apartment, etc

Package List

• Electronic Door Knob x1

• Mortise Lock x1

• Mechanical Key x2

• Screw Kit x 1

• Square bar x 1

• Guide plate x 1
