Paint Thickness Gauge Car Coating Thickness Meter for Automobile Paint Inspection Manufacturing Industry Metal Surface

Features:
Paint Thickness Gauge: The thickness gauge is used to measure the thickness of metal coating and coating, such as paint/enamel/chromium on steel, paint and anodic oxidation coating on aluminum/copper. Automatically detect the properties of the substrate.

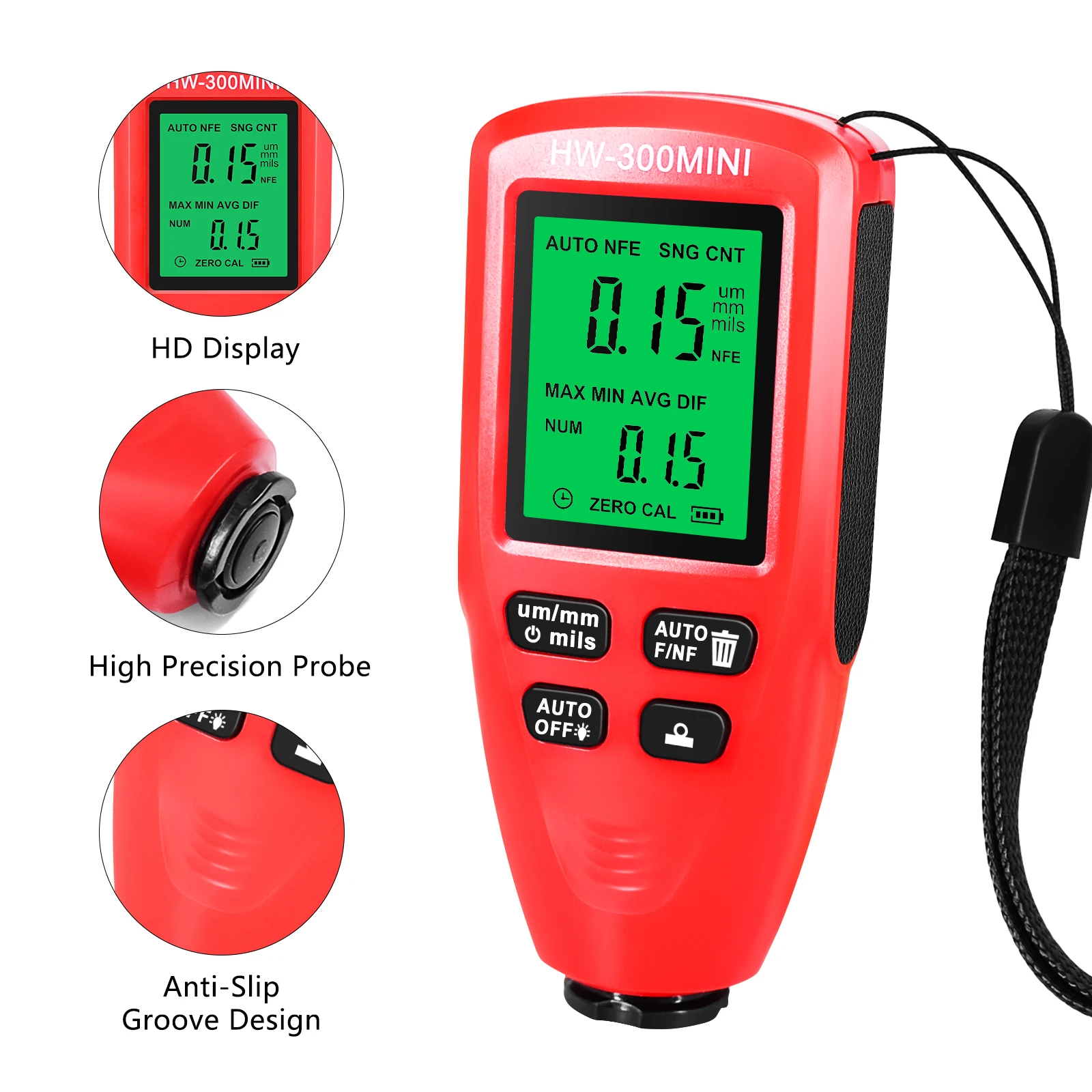

Easy to Read: HD display, paint thickness displayed on large screen, Unit switching (um micron, mm mm, Mill mils), accurate and fast testing.
Anti-slip Design: The design of Paint Thickness Gauge is ergonomic, anti-slip groove make it easy to test during use. Palm size, easy to handle.
For Car Buyer: When buying a second-hand car, the store may not be able to tell us that the car had a serious collision. When purchasing a used car, check the car paint to ensure that the paint thickness on each panel is approximately the same.
Widely Used: This instrument is used for nondestructive measurement of coating and paint thickness. It is a necessary equipment for material surface treatment, widely used in manufacturing, metal processing, chemical industry, commodity inspection and other fields, and can also work stably in laboratories, workshops and outdoor.

Specifications:
Item: Paint Thickness Gauge
Color: White
Material: ABS
Battery: 2*AAA Battery(not Included)
Measuring Range: 0-2000UM
Measurement Accuracy: ± (3%+1um)
Resolution: 0um~99.9um(0.1um) 100um~999um(1um) >1000um(0.01mm)
Minimum Convex Radian: 5mm
Minimum Concave Radian: 25mm
Minimum Measured Area: Diameter 20mm
Minimum Substrate Thickness: 0.2mm, 0.05mm
Maximum Measuring Speed: 2 Readings Per Second
Operating Temperature: - 10 ℃~50 ℃
Size: 9.5*4*2.2cm
Packing Size: 11.8*5.8*3cm
Packing Weight: 90g

Package List:
1* Paint Thickness Gauge
1* Some Calibration Piece
1* User Manual
